Product Description:

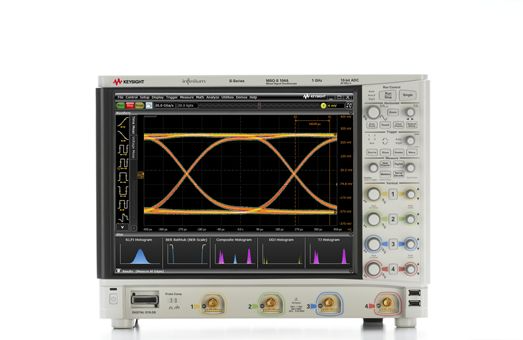

The MSOS104A S Series oscilloscope is equipped with 1 GHz memory, a 15-inch XGA capacitive touch screen, and a 10-bit analog-to-digital converter.
Features:
-
1 GHz bandwidth (scalable)
-
4 analog channels and 16 digital channels
-
A sample rate of up to 20 GSa/s and the standard 50 Mpts memory per channel can capture longer signal traces
-
With 7.8-bit system ENOB and 10-bit analog-to-digital converter (ADC), excellent signal integrity is achieved
-
A 15-inch multi-touch capacitive touch screen makes the oscilloscope easier to use, and a solid-state drive speeds up startup and increases reliability
-
A wide range of protocols, conformance testing and analysis software can improve your testing
State-of-the-art platform:
-
The 15-inch capacitive touch screen supports multi-touch
-
The Intel i5 motherboard comes with 8G of RAM, which provides excellent processing speed
-
The standard solid-state drive greatly improves boot speed and high reliability
-
USB 3.0 and Ethernet interfaces offer data unloading speeds of up to 200 MB/s
