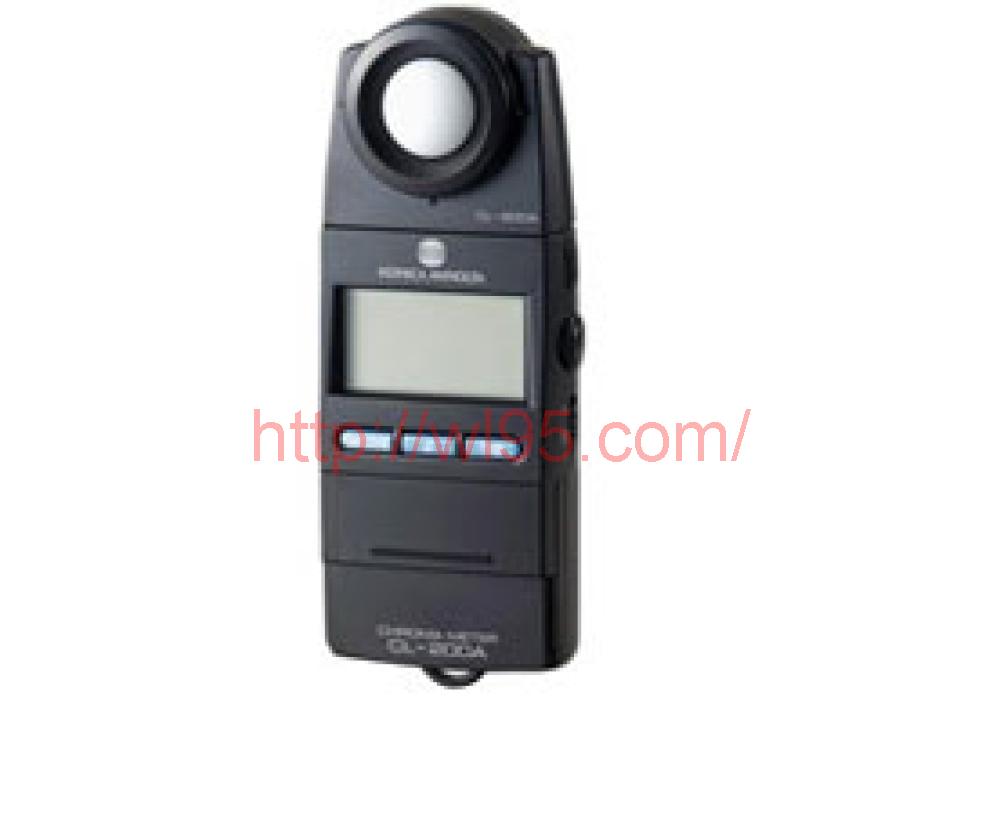

CL-200A色度计
CL-200A色度计可同时测量LED，有机LED（OLED）和其他形式的有机电致发光（EL）等光源的色度，以及色温和照度。
CL-200A色度计是CL-200的下一代产品，可测量LED，有机LED（OLED）和其他形式的有机电致发光（EL）等光源的色度以及色温和照度。
色温的测量是确定LED照明正确性的重要部分。CL-200A包含与国际照明委员会（CIE）定义的色彩匹配功能相协调的精密传感器；结果以各种特定于应用程序的颜色符号显示。
该设备的设计目的是产生非常可靠的色温测量结果，尤其是对于白光LED。CL-200A的设计具有检查输出光质量的能力，同时可以测量完全组装的白色LED的荧光粉的色度。
CL-200A色度计是一种紧凑的设备，旨在舒适地适合您的手掌。该设计便于携带，并且由电池供电。该色度计配备了电量不足指示器，并且对可充电电池友好。CL-S10w数据管理软件随CL-200A一起提供，该软件包括日本工业标准（JIS）计算排名功能，使用户可以轻松地将数据传输到Excel。该仪器还可以通过个人计算机直接连接和操作。
接收头可以从主体上拆下，可以在暗室盒子中使用或安装在检查系统中。通过局域网电缆将接收器和身体连接起来，收集数据。CL-200A色度计的特点是可以使用多达30个接收头来收集多点测量值，并且具有用户友好的校准功能。校准功能可将测量值与特定样品进行比较。
Cl-200A色度计可理想地用于需要照明生产和调整，彩色观察柜维护，用作照相色度计，测量投影仪光源，LED广告牌开发和维护以及评估LED照明灯具的光分布的情况或模型。
特征：
CL-200A Chroma Meter
The CL-200A Chroma Meter concurrently measures the chromaticity of light sources such as LED, Organic LED (OLED), and other forms of Organic Electroluminescence (EL) as well as color temperature and illuminance.
The CL-200A Chroma Meter, the next generation to the CL-200, measures the chromaticity of light sources such as LED, Organic LED (OLED), and other forms of Organic Electroluminescence (EL) as well as color temperature and illuminance.
The measure of color temperatures are an important part of determining the correctness of a LED’s illumination. The CL-200A incorporates precision sensors coordinate with the International Commission of Illumination (CIE) defined color matching functions; the results are displayed in a variety of application specific color notations.
This device is crafted for the purpose of producing greatly reliable color temperature measurements, especially for white LEDs. The design of the CL-200A has the capability of inspecting the output light quality while measuring the chromaticity from the phosphor of a completely assembled white LED.
The CL-200A Chroma Meter is a compact device created to fit comfortably in the palm of your hand. The design includes easy portability and is battery operated. This chroma meter comes equipped with a low battery indicator and is rechargeable battery friendly. CL-S10w Data Management Software, which includes the Japanese Industrial Standard (JIS) calculations ranking function, is provided with the CL-200A making it easy for users to transfer data to Excel. The instrument can also be connected and operated directly through a personal computer.
The receptor head can be removed from the main body and can be used in darkroom boxes or installed in an inspection system. Data is collected by connecting the receptor and body via a LAN cable. The CL-200A Chroma Meter features the ability to collect multi-point measurements by using up to 30 receptor heads along with the user friendly calibration function. The calibration function provides the ability to compare measured values to a specific sample.
The Cl-200A Chroma Meter works ideally in situations requiring lighting production and adjustment, color-viewing cabinet maintenance, utilization as a photographic color meter, measuring projector light sources, LED billboard development and maintenance, and the evaluating the light distribution of LED illumination fixtures or models.
feature：
