Product Description:

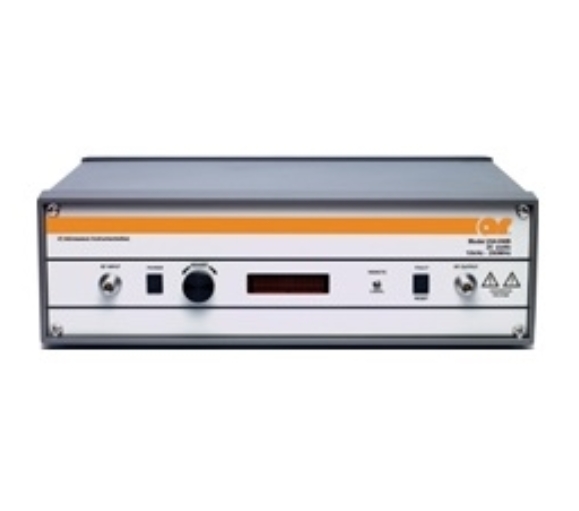

The 2500A225C adopts a wind-cooled cooling design, featuring a sturdy structure and high integration. It is suitable for fixed deployment in laboratories and test systems. Its frequency range is from 10kHz to 225MHz, capable of meeting the requirements of large power signal amplification in the medium and low frequency bands. The rated output power is up to 2500W, allowing for stable output of large power signals to meet strict test standards (such as MIL-STD 461, DO-160, etc.). The equipment is equipped with a user-friendly front panel operation interface, including gain adjustment knobs, status indicator lights, and fault alarm display. It also supports remote control, facilitating the integration of automated testing systems.
Product Features:
Broadband coverage and ultra-high power output: The frequency range is 10kHz to 225MHz. Within the full frequency band, a stable rated power of 2500W can be output (the typical value is higher). It is the core equipment for high-power testing in the medium and low frequency bands, capable of meeting the requirements of high-power signal injection and large-power equipment simulation in conducted immunity testing.
Excellent gain and linearity: The typical gain is 50dB, and the gain flatness is controlled within ±1.5dB (across the full frequency band), ensuring the linearity during the signal amplification process, reducing distortion, and guaranteeing the fidelity of the output signal, meeting the requirements of high-precision testing for signal integrity.
