Description:

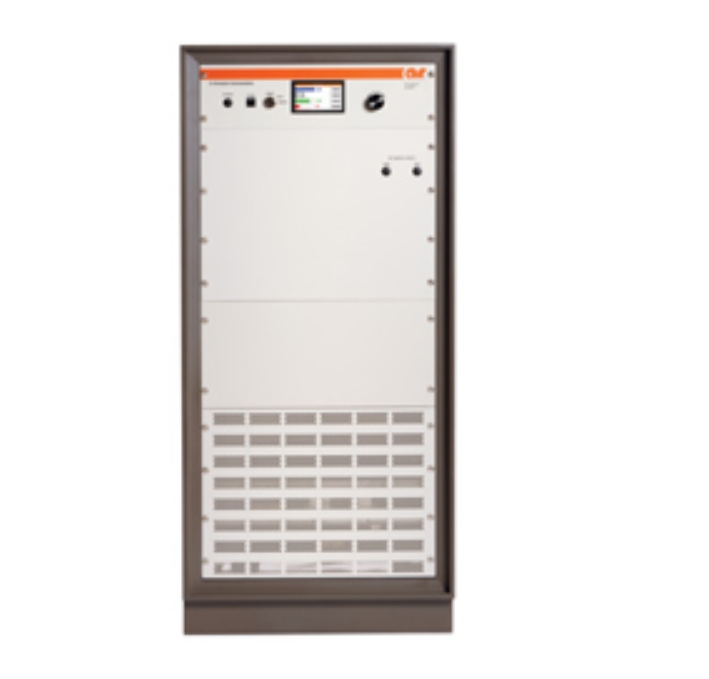

The 6000W1000 of AR is a solid-state electrostatic amplifier that covers a frequency range of 80 - 1000 MHz. When used together with a scanning generator, it provides at least 6000 watts of RF power. Like most AR amplifiers, this model is highly suitable for applications that require instantaneous bandwidth and high gain.
When overheating or power failure occurs, the front panel digital display will show the operating status and fault conditions. The amplifier is protected from RF input overload by the RF input equalization circuit. When the amplifier exceeds 0 dBm, this circuit controls the input level of the first stage of the amplifier. This amplifier is specifically designed for desktop use, but it can be removed from the cabinet to install on a rack.
Feature:
Rated power output: Minimum 6000 watts (80 - 1000 MHz)
Power output @ 3 dB compression: Nominal: 6000 watts
5500 watts (minimum 700 MHz), 5100 to 700 MHz are 1000 watts
Power output @ 1 dB compression: Nominal: 8500 watts
5000 watts (minimum power up to 700 MHz); minimum 4500 watts within the 700 to 1000 MHz range
Small signal gain flatness: +1.5 dB (typical value), +2.0 dB (maximum value)
Gain: Minimum 67.8 dB (Maximum setting)
Input impedance: 50 ohms, VSWR 1.5:1, maximum value
Output impedance: 50 ohms, nominal value
