Product Description:

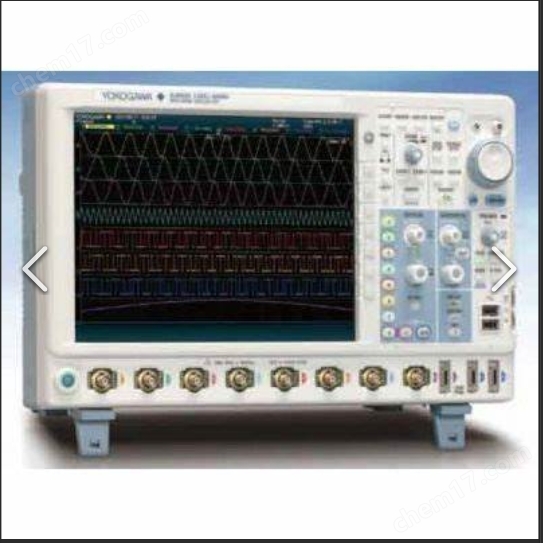

The DLM4000 is a unique 8-channel mixed signal oscilloscope for test and commissioning applications in the embedded systems, power electronics, mechronics and automotive industries. 350MHz bandwidth or 500MHz bandwidth can be selected, with sampling rates up to 2.5G/s. The DLM4000 has eight analog input channels, the eighth channel can be switched to an 8-bit logic input channel, and the 16-bit logic input option can be selected for 24-bit logic analysis. The DLM4000's advanced measurement and analysis capabilities include power analysis, serial bus analysis, real-time digital filtering, user-defined operations, and more. With a memory depth of up to 250Mpts, the DLM4000 is the ideal test and measurement tool for engineers, while its large 12.1-inch display, compact horizontal body, ergonomic and user-friendly interface make the DLM4000 easy to operate.
Features:
Use various search functions to quickly and easily analyze single waveforms up to 250Mpts.
Two completely independent scaling Windows can not only analyze the causes and effects of anomalies in all input channels, but also observe and compare the details and timing of different serial buses at different rates.
It should be noted that an oscilloscope with insufficient storage space may result in a low sampling rate and an inability to accurately capture the waveform
In single trigger mode, 10kHz signals can be captured continuously for more than 1 hour by increasing the maximum memory option (/M3). Even with a sample rate of 1.25GS/s, the same memory condition can capture a 200ms signal.
