Product Description:

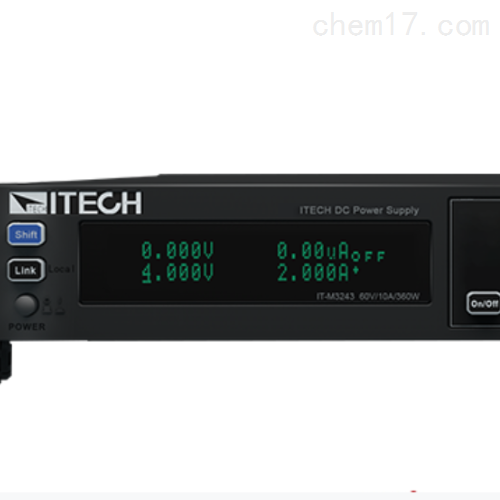

Aidex IT-M3243 Programmable DC power supply IT-M3200 has a flexible modular architecture, independent multi-channel design, support synchronous operation function, users can configure each channel according to the test requirements of the object to be tested, up to 16 channels, to meet the needs of customization. Widely used in 3C products, semiconductor devices, 5G, Internet of things and medical electronic equipment and other fields.
Product features:
½ 1U Mini size, power up to 360W
Wide range design for low voltage high current or high voltage low current
Four-gear current range Low/Middle/High/Auto
Low ripple, low noise
High resolution, high accuracy and high stability (current read-back resolution up to 10nA)
CC/CV priority setting function
Foldback Protection function
Voltage/current rise/fall time is adjustable
Multi-channel independent control, up to 16 channels
It can realize timing output/synchronous output/tracking proportional output between multiple channels
Up to 100 steps of LIST sequence programming, can output a variety of dynamic waveforms
Support CANOPEN,LXI,SCPI and other communication protocols
It CAN be equipped with five kinds of communication cards, providing RS232, CAN, LAN, GPIB, USB_TMC, USB_VCP, RS485, external analog and IO and other control modes
Multiple protection functions OVP/OCP/OTP/OPP/UVP/UCP
