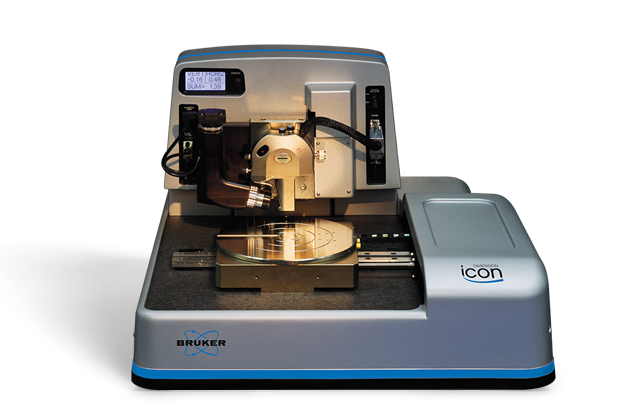

销售布鲁克 Dimension lcon 原子力显微镜

浏览次数:95

产品参数

选件 是否计量 发货周期 保修时间 成色
否 3天 90天 8成新
所在地 机身号 状态 资料下载
深圳市 完好
更新日期:2024-10-22
联系电话:0755-86016691

* 产品描述

产品描述:

布鲁克的 Dimension Icon 为科学和工业领域的纳米级研究人员带来了最高水平的性能、功能和 AFM 可访问性。它建立在世界上使用最广泛的大样品 AFM 平台之上,是数十年技术创新、客户反馈和行业领先的应用灵活性的结晶。该系统从上到下都经过精心设计,可提供革命性的低漂移和低噪声,使用户能够在几分钟内获得无伪影的图像,而不是几小时。随着硬件和软件扩展目录的不断增长,研究人员可以在最广泛的应用中使用这种无与伦比的性能,甚至支持最先进和创新的研究目标。

特点:

8 英寸晶圆真空吸盘,能够容纳各种形状和尺寸的样品,厚度可达 15 mm
90 微米 x 90 微米 x 12 微米 XYZ 闭环扫描仪,小于 15 点
具有自动参数调整功能的 ScanAsyst 地形模式
用于快速纳米力学成像的 PeakForce QNM
用于导电 AFM 与纳米力学映射相结合的 PeakForce TUNA

详细信息

Product Description:


Bruker's Dimension Icon brings the highest level of performance, functionality and AFM accessibility to nanoscale researchers in science and industry. It is built on the world's most widely used large sample AFM platform and is the culmination of decades of technological innovation, customer feedback and industry-leading application flexibility. The system has been carefully designed from top to bottom to deliver revolutionary low drift and low noise, enabling users to obtain artefact free images in minutes instead of hours. With a growing catalog of hardware and software extensions, researchers can use this unmatched performance in the widest range of applications, supporting even the most advanced and innovative research goals.


Features:


The 8-inch wafer-vacuum sucker is capable of holding samples of all shapes and sizes up to 15 mm thick

90 micron x 90 micron x 12 micron XYZ closed loop scanner, less than 15 points

ScanAsyst terrain mode with automatic parameter adjustment

PeakForce QNM for rapid nanomechanical imaging

PeakForce TUNA for combining conductive AFM with nanomechanical mapping
