Product Description:

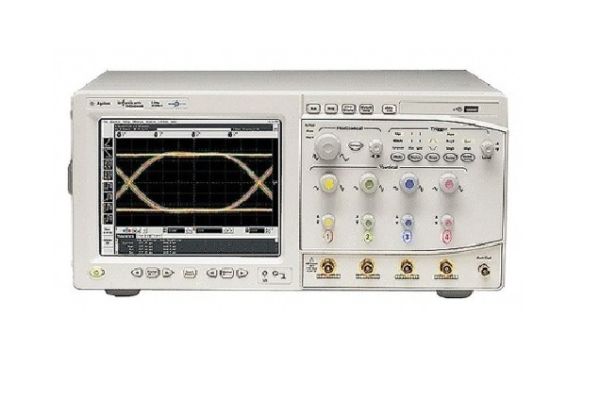

The DSO81304B is a 13 GHz, 4 channel digital oscilloscope from Agilent. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
If you are designing, debugging or validating a serial-data-based design, consider the DSA80000B Digital Signal Analyzer. The DSA80000B is built around an Infiniium DSO80000B Series oscilloscope and the InfiniiMax probing system, to provide critical capabilities for achieving accurate and repeatable measurements. The oscilloscope includes as standard the option 001 memory, the E2688A high-speed serial data analysis software, and the N5400A EZJIT Plus jitter analysis software at an attractive price.
Features:
13-GHz Bandwidth, upgradeable to 13 GHz
-
4 analog channels
-
Up to 40 GSa/s sample rate
-
Standard 512 kpts memory with optional 2 Mpts memory (64 Mpts at 4 GSa/s) optional 2 Mpts memory
-
XGA display with 256 levels of intensity grading
Industry Leading Signal Integrity
-
Noise floor: 419 uV @5 mV/div
-
Trigger jitter < 500 fs (rms)
-
Lowest hardware vertical sensitivity: 5 mV/div
-
Industry´s only noise reduction option (opt 005)
Largest Selection of Application Solutions
-
Complete set of jitter analysis packages
-
Complete set of customization packages including User Defined Functions, link to MatLab®
-
Compliance solutions for many serial standards like FBD, Certified Wireless USB, PCI Express II and more Compliance solutions
InfiniiMax Probing Solutions (1.5 GHz - 12 GHz)
-
Industry´s lowest noise floor probing system
-
Highest signal fidelity InfiniiMax II probing system
-
Interchangeable probe heads
-
Industry´s only RoHS compliance solder-in probing solution
