浏览次数：650
| 选件 | 是否计量 | 发货周期 | 保修时间 | 成色 |
|---|---|---|---|---|
| 否 | 1-4周 | 12天 | 8成新 | |
| 所在地 | 机身号 | 状态 | 资料下载 | |
| 深圳市 | 完好 |
描述：

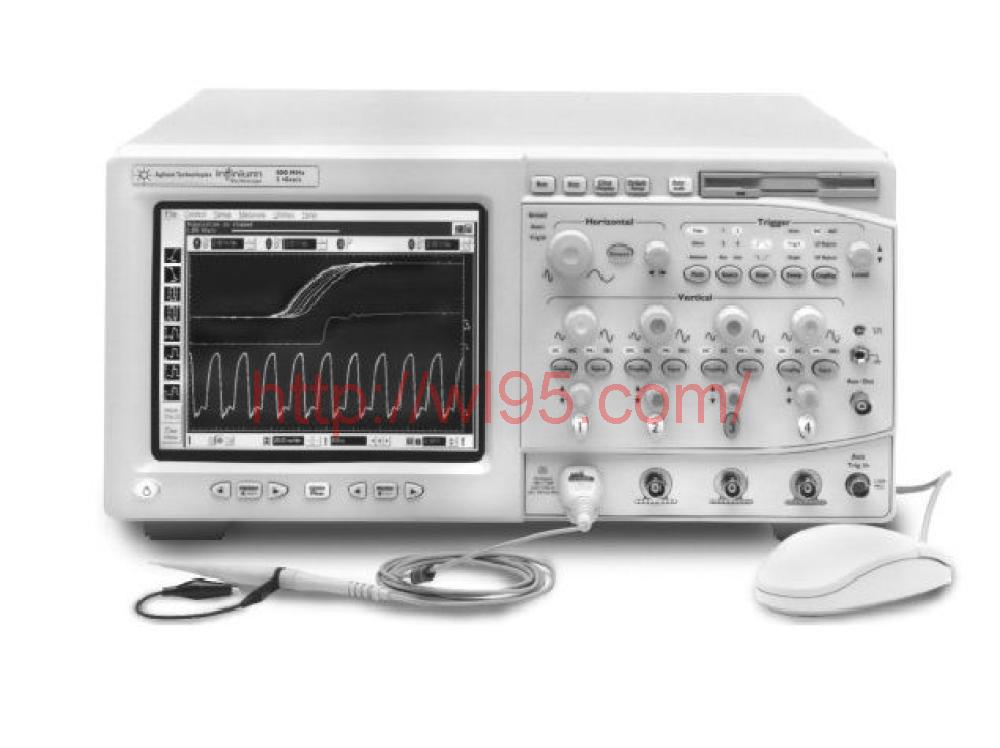

54810A是Agilent的500 MHz 2通道数字示波器。随时间测量电子电路或组件中的电压或电流信号，以显示幅度，频率和上升时间等。应用包括故障排除，生产测试和设计。
附加功能：
安捷伦Infiniium系列54810A提供了通用设计和故障排除所需的多功能性和性能。2个通道，500 MHz带宽以及两个通道上的采样率均为1 GSa / s，同时为您提供了更快完成工作所需的功率。与其他Infiniium型号一样，Agilent 54810A的简单，熟悉的用户界面使您可以轻松利用其内部性能。
Agilent Technologies的Infiniium 54800系列示波器旨在帮助您更快地完成测量工作。一个简单的类似模拟的前面板，一台PC的图形用户界面以及强大的连接功能使高性能功能可访问且不复杂。
简单的类似于模拟的前面板
Infiniium示波器为您提供了模拟示波器的简单，整洁的前面板，用于访问基本功能。每个通道的专用刻度和位置旋钮可提供直观的操作。触发LED指示灯一眼即可显示触发状态。为了加快测量速度，使用QuickMeas +键可立即访问任何四个测量值或四个预选功能。
熟悉的图形用户界面
Infiniium示波器采用基于Microsoft®Windows®的图形用户界面。熟悉的Windows界面可最大程度减少学习和重新学习示波器所花费的时间。下拉菜单使您可以轻松访问高级功能。对话框显示测量设置所需的所有选择。
另外，通过使用鼠标拖放，可以轻松在显示器上定位波形，标记和测量。
轻松的远程访问
通过Web或LAN远程访问您的Infiniium示波器。您可以从任何启用Java™的Web浏览器远程显示和控制Infiniium，也可以将Infiniium设置为在示波器触发间歇性事件时发送带有显示位图的电子邮件。您甚至可以通过LAN上的GPIB命令来控制范围。
便捷的数据共享
Infiniium范围提供了记录和共享结果所需的工具。只需单击几下鼠标，即可将波形和屏幕位图保存到5 GB硬盘，120 MB SuperDisk软盘驱动器或网络上的驱动器中。LAN连接性还使您可以将结果打印到联网打印机。
您需要的性能
Infiniium示波器不仅易于使用。这些示波器提供了当今苛刻工作所需的高性能规格和功能。Infiniium拥有高达2.25 GHz的带宽，高达8 GSa / s的采样率以及高达4 GHz带宽的探头，可以查看最快的信号。强大的触发和分析功能可轻松捕获和分析波形。显示和数学功能（例如色阶持久性和直方图）使您可以轻松查看和隔离信号问题。
Agilent Infiniium示波器结合了易用性，正确的规格和广泛的功能集，可帮助您更快地完成工作。使用此处的信息来找到满足您的信号测量需求的范围；并查看接下来几页的功能，以了解Infiniium如何使其先进功能如此实用。
通用性强
Infiniium的500 MHz版本为通用实验室测量提供了卓越的性能和能力。根据您对单次测量精度的要求，选择1或2 GSa / s的采样率，并让您的应用需求和预算确定您选择两通道还是四通道模型。无论选择哪种Infiniium，都可以确保获得强大的示波器。
高性能
对于需要超过500 MHz带宽的应用，54835A提供了1 GHz下的四个通道，采样率高达4 GSa / s。
Infiniium 54845A和54846A提供最苛刻的应用程序所需的性能。54845A提供1.5 GHz带宽，而新的54846A提供2.25 GHz带宽。两者均提供高达8 GSa / s的采样率，以确保快速，准确地捕获信号。此外，54845A和54846A均提供了标准的逐周期抖动测量，因此您可以表征系统抖动。
The 54810A is a 500 MHz, 2 channel digital oscilloscope from Agilent. Measure voltage or current signals over time in an electronic circuit or component to display amplitude, frequency and rise times, etc. Applications include troubleshooting, production test, and design.
Additional Features:
The Agilent Infiniium family's 54810A provides the versatility and performance you need for general purpose design and troubleshooting. 2 channels, 500 MHz bandwidth, and a sample rate of 1 GSa/s on both channels simultaneously gives you the power needed to get your job done faster. Like the other Infiniium models, the Agilent 54810A's easy,familiar user interface makes it easy to take advantage of the performance inside.
Agilent Technologies’ Infiniium 54800 Series oscilloscopes are designed to help you get your measurement job done faster. A simple, analog-like front panel, the graphical user interface of a PC, and powerful connectivity capabilities make high-performance features accessible and uncomplicated.
Simple Analog-Like Front Panel
Infiniium oscilloscopes give you the simple, uncluttered front panel of an analog scope for accessing basic functions. Dedicated scale and position knobs for each channel provide intuitive operation. Trigger LEDs show you trigger status at a glance. To speed up measurements, the QuickMeas+ key gives you instant access to any four measurements or and four preselected functions.
Familiar Graphical User Interface
Infiniium scopes employ a graphical user interface based on Microsoft® Windows®. The familiar Windows interface minimizes time spent learning and relearning the scope. Pull-down menus give you easy access to advanced features. Dialog boxes display all the choices you need to make for measurement setups.
In addition, waveforms, markers, and measurements can be easily positioned on the display by using your mouse to drag and drop.
Easy Remote Access
Access your Infiniium scope remotely over the web or LAN. You can remotely display and control your Infiniium from any Java™ -enabled web browser, or set up your Infiniium to send an e-mail with a bit map of the display screen when the scope triggers on an intermittent event. You can even control your scope with GPIB commands over LAN.
Convenient Data Sharing
Infiniium scopes offer the tools you need to document and share your results. It takes just a few mouse clicks to save waveforms and screen bit maps to the 5 GByte hard drive, the 120 MByte SuperDisk floppy disk drive, or a drive on your network. LAN connectivity also lets you print your results to networked printers.
The Performance You Need
Infiniium scopes aren’t just easier to use. These scopes provide the highperformance specifications and features you need for today’s demanding jobs. With bandwidths up to 2.25 GHz, sample rates up to 8 GSa/s, and probes with up to 4 GHz bandwidths, Infiniium can view your fastest signals. Powerful triggering and analysis make it easy to capture and analyze your waveforms. Display and math features, such as color-grade persistence and histograms, let you easily view and isolate signal problems.
Agilent Infiniium scopes combine ease-of-use, the right specifications, and a broad feature set to help you get your job done faster. Use the information here to find the scope that meets your signal measurement needs; and review the features on the following pages to see how Infiniium makes its advanced power so usable.
General-Purpose Versatility
The 500 MHz versions of Infiniium provide exceptional performance and capability for general-purpose lab measurements. Select a sample rate of 1 or 2 GSa/s, based on your requirements for single-shot measurement accuracy, and let your application needs and budget determine your choice of a two- or four-channel model. Whichever Infiniium you select, you can be sure of getting a powerful scope.
High Performance
For applications requiring more than 500 MHz bandwidth, the 54835A offers four channels at 1 GHz, with sample rates up to 4 GSa/s.
The Infiniium 54845A and 54846A provide the performance you need for your most demanding applications. The 54845A offers 1.5 GHz bandwidth, while the new 54846A offers 2.25 GHz bandwidth. Both provide sample rates up to 8 GSa/s to ensure fast, accurate capture of your signals. In addition, both the 54845A and 54846A offer a standard cycle-to-cycle jitter measurement so that you can characterize your system jitter.
