Product Introduction:

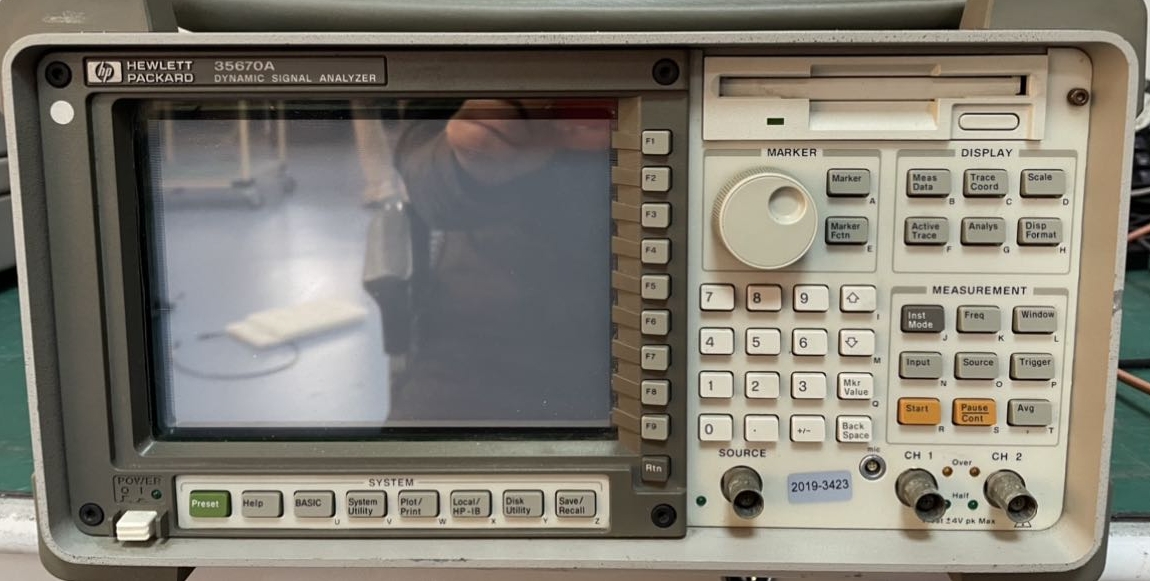

Keysight 35670A (Agilent) FFT Dynamic Signal Analyzer is a versatile FFT analyzer with built-in source for general spectrum and network analysis, as well as octave, order and correlation analysis. The built-in source has optional analytical capabilities to optimize noise, vibration and acoustic problem analysis and troubleshooting of the instrument, to evaluate and resolve rotating machinery problems, and to characterize control system parameters
Features:
One channel is 102.4 kHz, two channels are 51.2kHz, and four channels are 25.6kHz
100, 200, 400, 800 and 1600 line resolutions
The dynamic range of 90db is 130db in swept-sine mode
Sources: Random, Burst Random, Periodic chirp, Burst chirp, Pink Noise, Sinusoidal, arbitrary waveform
Measurements: Linear, cross and power spectrum, power spectral density, Frequency response, coherence, THD, Harmonic Power, time waveform, autocorrelation, cross-correlation, histogram, PDF, CDF
Octave analysis triggers waterfall display
Tachometer input and order tracking with track chart
Built-in 3.5-inch floppy disk.
