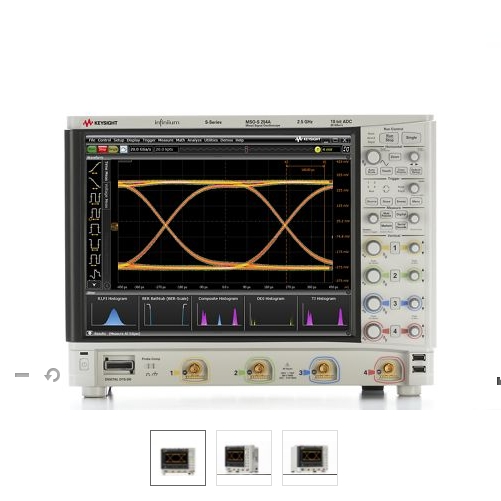

The MSOS254A high-definition oscilloscope has 4 analog channels and 16 digital channels, with a bandwidth of 2.5GHz, a 15 "XGA capacitive touch screen, and a 10 bit analog-to-digital converter.
characteristic
-
2.5GHz bandwidth/4 analog channels
-
Mixed signal version with 16 digital channels and logic probes
-
Maximum sampling rate -20 GSa/s (2 sampling periods); 10 GSa/a (4 sampling cycle periods)
-
Maximum memory depth - optional up to 800 Mpts
-
15 inch capacitive touch display
-
A simple menu structure optimized for mice and touch displays
-
The setup wizard will guide you step by step through each setting to obtain the best measurement results
-
10 bit ADC - vertical resolution is 4 times that of an 8-bit oscilloscope
-
16 mathematical functions and over 50 automatic measurements
-
Supports over 100 probes - (current and voltage, active and passive)
