Product Description:

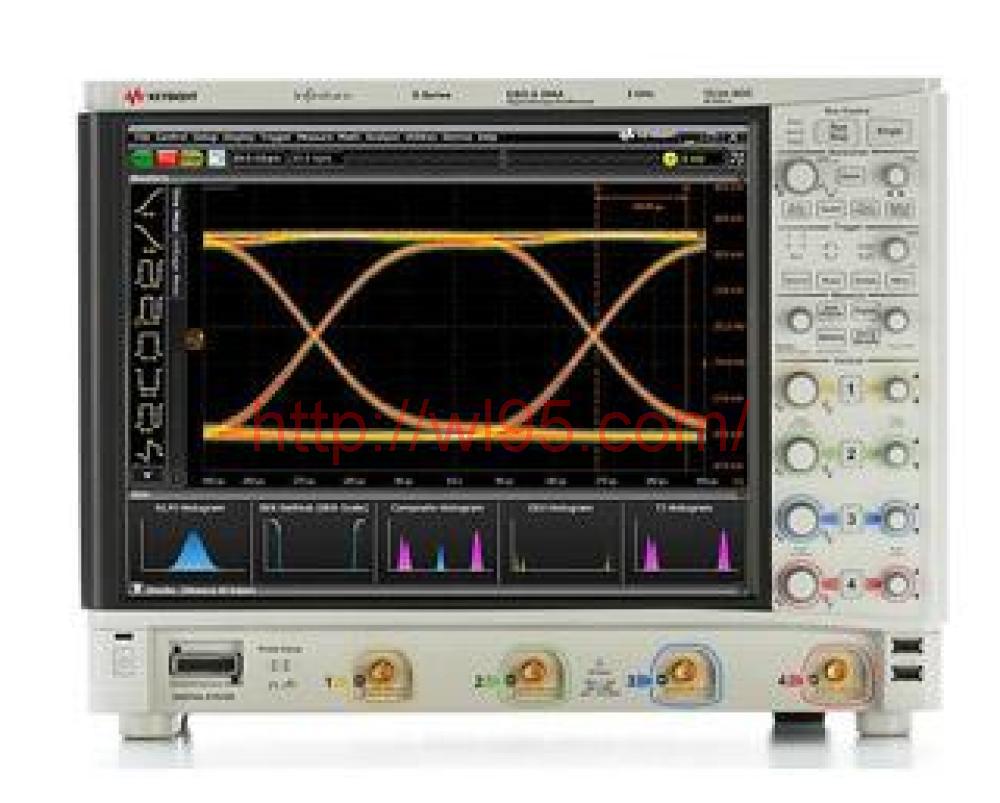

The DSOS104A S Series oscilloscope is equipped with 1 GHz memory, a 15-inch XGA capacitive touch screen, and a 10-bit analog-to-digital converter.
Whether you have to debug the latest design or verify compliance, a true representation of the signal the oscilloscope displays is critical. This requires world-class signal integrity. The Infiniium S series oscilloscopes were designed with this in mind. The S-Series offers superior timebase, front-end, and ADC technology modules. This gives you a platform with a resolution of up to 16 bits, low noise, low jitter and high significant bits (ENOB), giving you an idea of the true performance of your device.
Features:
-
1 GHz bandwidth (scalable)
-
4 analog channels
-
A sample rate of up to 20 GSa/s and the standard 50 Mpts memory per channel can capture longer signal traces
-
With a 7.8-bit system ENOB and a 10-bit analog-to-digital converter (ADC), excellent signal integrity is achieved
-
15-inch multi-touch capacitive touch screens make oscilloscopes easier to use, and solid-state drives speed up startup and improve reliability
-
A wide range of protocols, conformance testing and analysis software can improve your testing
