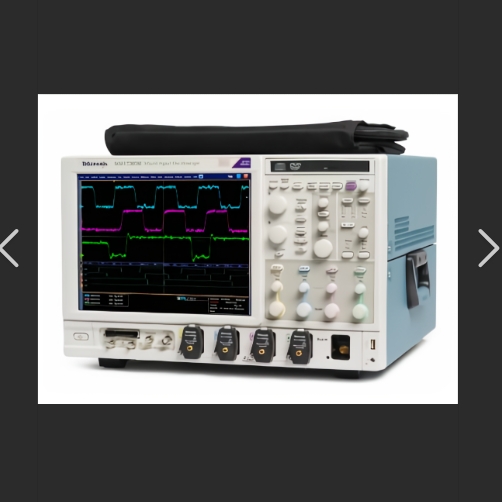

DPO70404C utilizes Tektronix's proprietary DSP enhancement technology to achieve a matched bandwidth of up to 20 GHz in dual, triple, or full channels. On each channel, users can choose to use DSP filters, which provide amplitude and phase correction functions and can extend the bandwidth to 20 GHz to more accurately display ultra high speed signals. DSP filters can also be turned off on each channel, taking advantage of the true analog bandwidth advantage to meet the application requirements of capturing raw data at the fastest acquisition speed, up to the bandwidth enhancement function at the probe tip. It supports bandwidth step adjustment, can change the oscilloscope bandwidth, accurately capture transient signals, and eliminate the influence of excess frequency components and noise.
characteristic:
-
20, 16, 12.5, 8, 6, and 4 GHz bandwidth models
-
Real time sampling rate of up to 50 GS/s
-
Record length of up to 200 M sample points, supporting MultiView ZoomTM function for quick browsing of information
-
The fastest waveform capture rate, with a maximum waveform capture rate of>300000 wfm/s per channel
