Product Description:

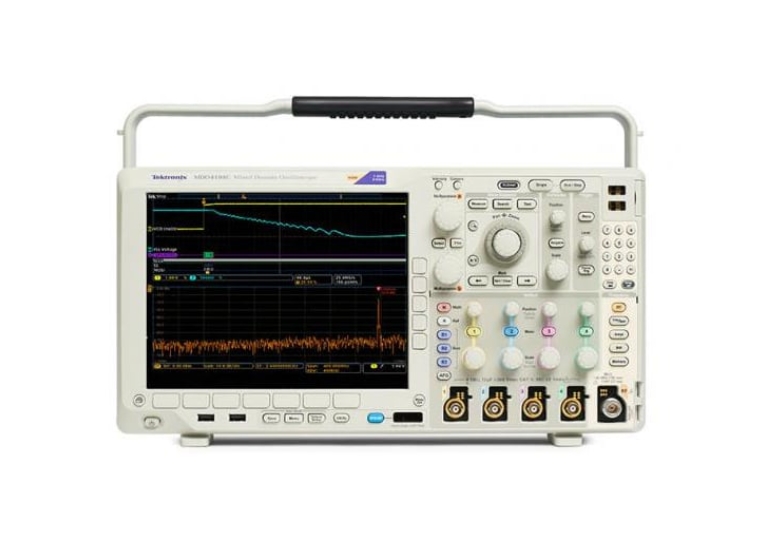

The Tektronix MDO4034C is a 6-in-1 integrated oscilloscope that combines the functions of an oscilloscope, spectrum analyzer, arbitrary/functional generator, logic analyzer, protocol analyzer, and digital voltmeter/frequency counter. It has 4 analog channels with a 350 MHz bandwidth, a maximum sampling rate of 2.5 GS/s, and a record length of 20M on all channels. The maximum waveform capture rate exceeds 340,000 wfm/s.
Product Features:
Powerful signal acquisition and analysis capabilities
Multiple channel configurations: 4 analog channels, with the option to add 16 digital channels and 1 RF channel, enabling synchronous analysis of analog, digital and RF signals, facilitating system-level troubleshooting, and capable of triggering signals on any channel.
High sampling rate and long record length: Up to 2.5GS/s sampling rate and 20M record length per channel, allowing for capturing more signal details while maintaining resolution, which is beneficial for analyzing complex waveforms and transient events.
Wide bandwidth coverage: 350MHz analog bandwidth, which can be upgraded to a higher bandwidth, meeting the measurement requirements for various signal frequencies, and also capable of precisely analyzing -65dBc (typical value) dynamic range and up to 6GHz frequency range RF signals, with an ultra-wide capture bandwidth of up to 3.75GHz, allowing for simultaneous viewing of the entire spectrum.
FastAcq fast waveform capture: Capture speed of over 340,000 waveforms per second, enabling rapid identification of faults and other uncommon transient signals, and displaying them in color grading, helping users quickly understand the events of interest.
