Product Description:

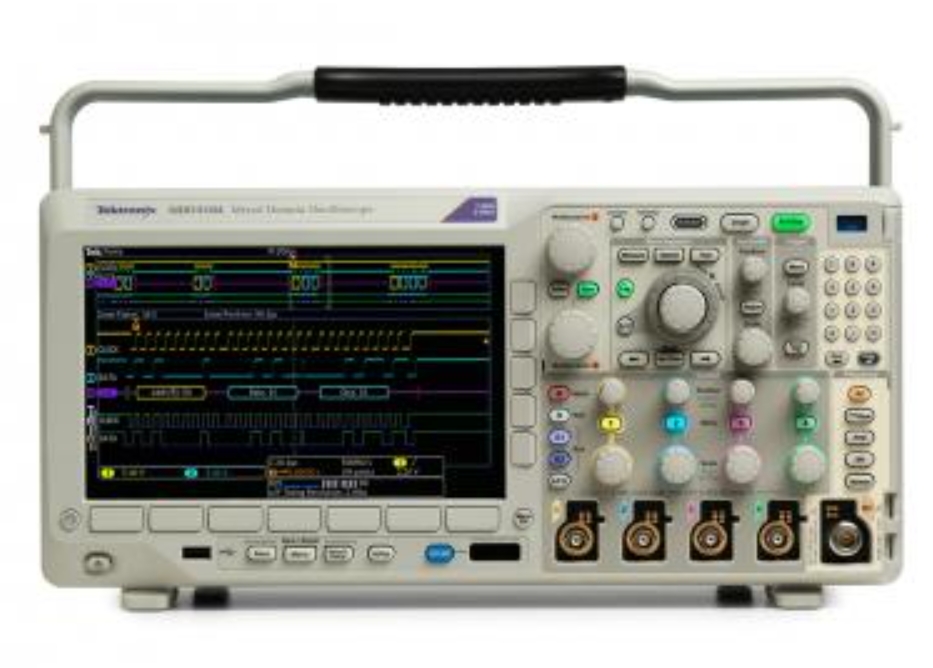

The Tektronix MDO3104 is a 6-in-1 comprehensive oscilloscope launched by Tektronix. It integrates various functions such as oscilloscope, spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. This oscilloscope offers a 4-channel model with a bandwidth of 1GHz, a sampling rate of up to 5GS/s, and each channel has a 10M record length. It also features a waveform capture rate of over 280,000wfm/s.
Feature:
Multi-instrument integration: Integrates multiple measurement functions into one unit. Standard equipped with a spectrum analyzer, with a frequency range of 9kHz - 1GHz. An option is available to extend it to 3GHz. Optional features include 16 digital channels, arbitrary waveform generators, etc., to meet various testing requirements.
High sampling rate and recording length: The sampling rate is up to 5GS/s, enabling precise capture of the details of high-speed signals. A 10M recording length ensures long-term data recording, facilitating long-term observation and analysis of signals.
Strong waveform capture capability: Utilizing FastAcq™ technology, the waveform capture rate exceeds 280,000wfm/s, enabling rapid capture of occasional transient signals such as undershoot pulses, glitches, etc.
Rich triggering and analysis functions: Supports multiple triggering methods, including edge triggering, pulse width triggering, logic triggering, etc. It can also decode and analyze over 100 protocols such as I²C, SPI, CAN, etc., with 33 automatic measurement and waveform histogram functions, facilitating waveform analysis by users.
