Product Description:

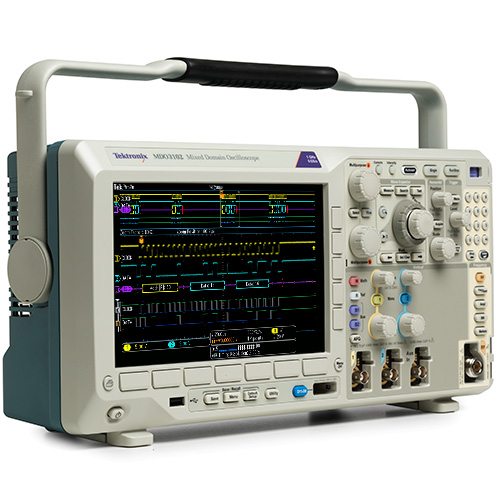

The Tektronix MDO3102 Mixed Domain Oscilloscope is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The Tektronix MDO3102 is completely customized and fully upgradable; Add the instruments and performance you need now - or later.
At the core of the Tektronix MDO3102 is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug – from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device’s behavior.
Features:
-
TekVPI probe interface directly supports active, differential, and current probes for automatic scaling and units
-
9 in. (229 mm) WVGA wide screen color display
-
Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 9.2 lb. (4.2 kg)
-
FastAcq high-speed waveform capture rate finds elusive signal anomalies quickly
-
Wave Inspector Controls provide easy navigation and automated search of waveform data
-
33 automated measurements and waveform histograms for simplified waveform analysis
Oscilloscope：
-
2 analog channel
-
1 GHz bandwidth
-
Bandwidth is upgradable (up to 1 GHz)
-
Up to 5 GS/s sample rate
-
10 M record length on all channels
-
>280,000 wfm/s maximum waveform capture rate
-
Standard passive voltage probes with 3.9 pF capacitive loading and 1 GHz, 500 MHz, or 250 MHz analog bandwidth
