Product Description:

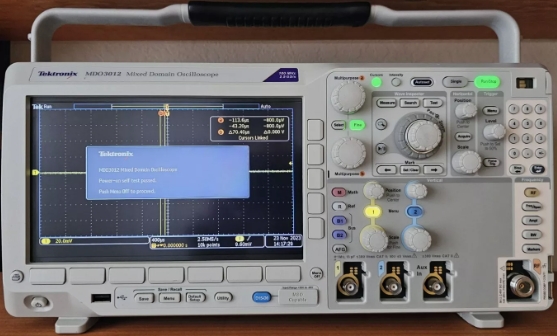

The MDO3012 is a MDO3000 series mixed domain oscilloscope with 100MHz bandwidth two analogue channels and one 100MHz spectrum analyser input. It is the ultimate 6-in-1 integrated oscilloscope, completely customizable and fully upgradeable. This mixed domain oscilloscope gives fast acquisition, selection record lengths and full suite of automated measurements help solve debug challenges quickly. It complies to UL61010-1:2004, CAN/CSA-C22.2 No. 61010.1: 2004, low voltage directive 2006/95/EC and EN61010-1:2001, IEC 61010-1:2001, ANSI 61010-1-2004, ISA 82.02.01 safety standards and EC council directive 2004/108/EC electromagnetic compatibility.
Features:
-
It is divided into two models: 2 analog channels and 4 analog channels
-
1 GHz, 500 MHz, 350 MHz, 200 MHz and 100 MHz bandwidth models
-
Bandwidth upgradeable (up to 1 GHz)
-
Up to 5 GS/s sampling rate
-
10 M recording length on all channels
-
> 280
