Product Description:

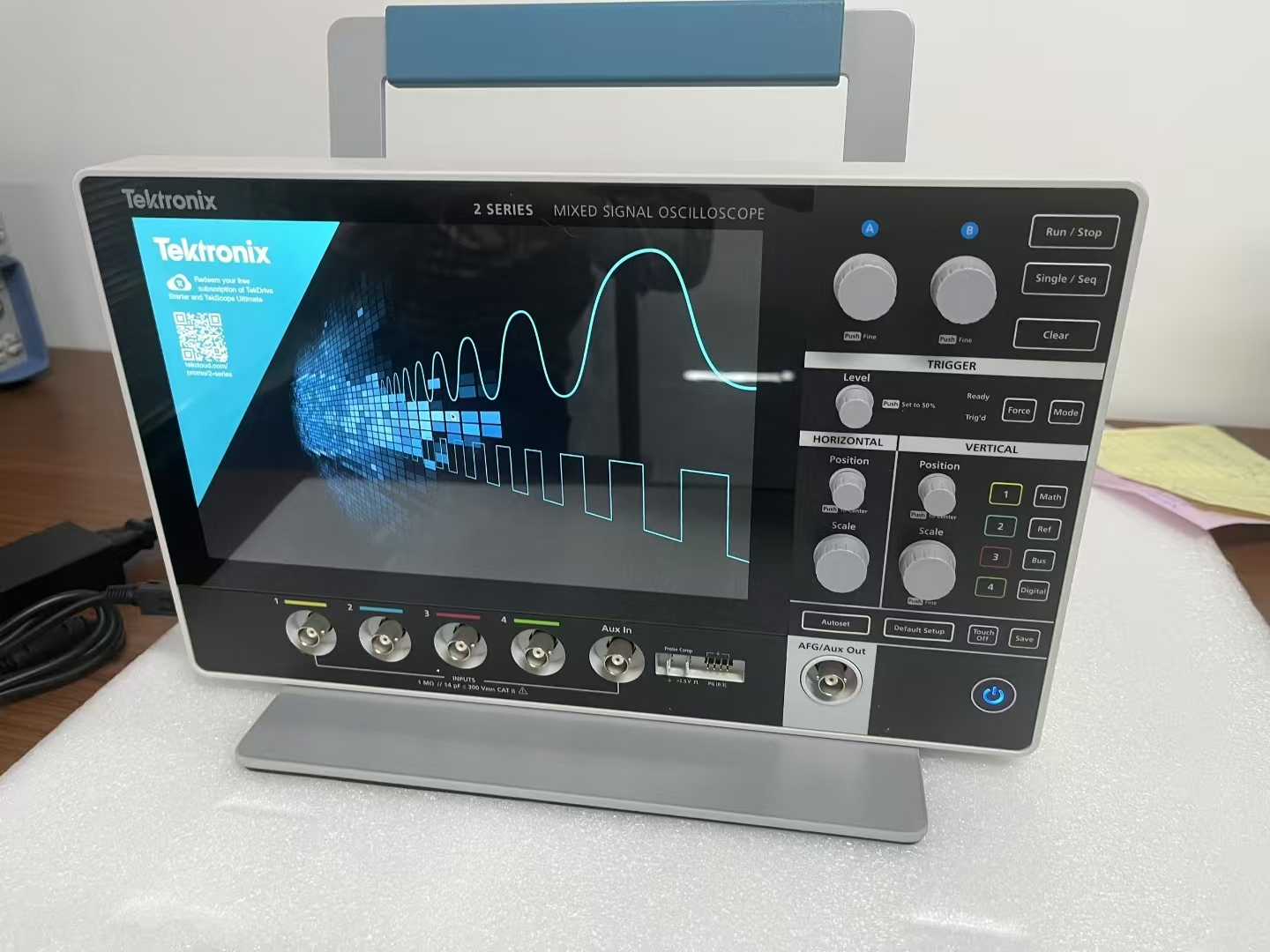

The 2 series MSO features up to 4 analog channels, a 500 MHz bandwidth, and a sampling rate of 2.5 GS/s. All of them adopt a compact form factor of approximately 1.5 inches thick. No matter where you work, the 2 series MSO is the preferred oscilloscope for electronic debugging and testing.
The 2 series MSO features a capacitive touchscreen and a highly intuitive user interface truly designed for touch, and is a member of Tektronix's award-winning next-generation oscilloscope series. The shared user interface and programming interface make any Tektronix next-generation oscilloscope easy to use. The optional battery pack expands the instrument's functionality, allowing the same instrument used in the laboratory to be used on-site as well.
A large number of compatible probes and comprehensive accessories make the 2 series MSO the most powerful and versatile instrument in its class, suitable for a wide range of applications.
Product Features:
The analog channel bandwidths are 70 MHz, 100 MHz, 200 MHz, 350 MHz and 500 MHz
Guarantee a bandwidth of 500 MHz, ranging from 4 mV/div to 10 V/div.
The sampling rate is 1.25 GS/s for full-channel sampling and 2.5 GS/s for half-channel interlaced sampling
The record length is 10 meters
Waveform capture rate, with typical values >4,000,000 frames per second
Digital Channel 16
AFG output 1 (Multiplexed with Aux Out)
