产品概述：

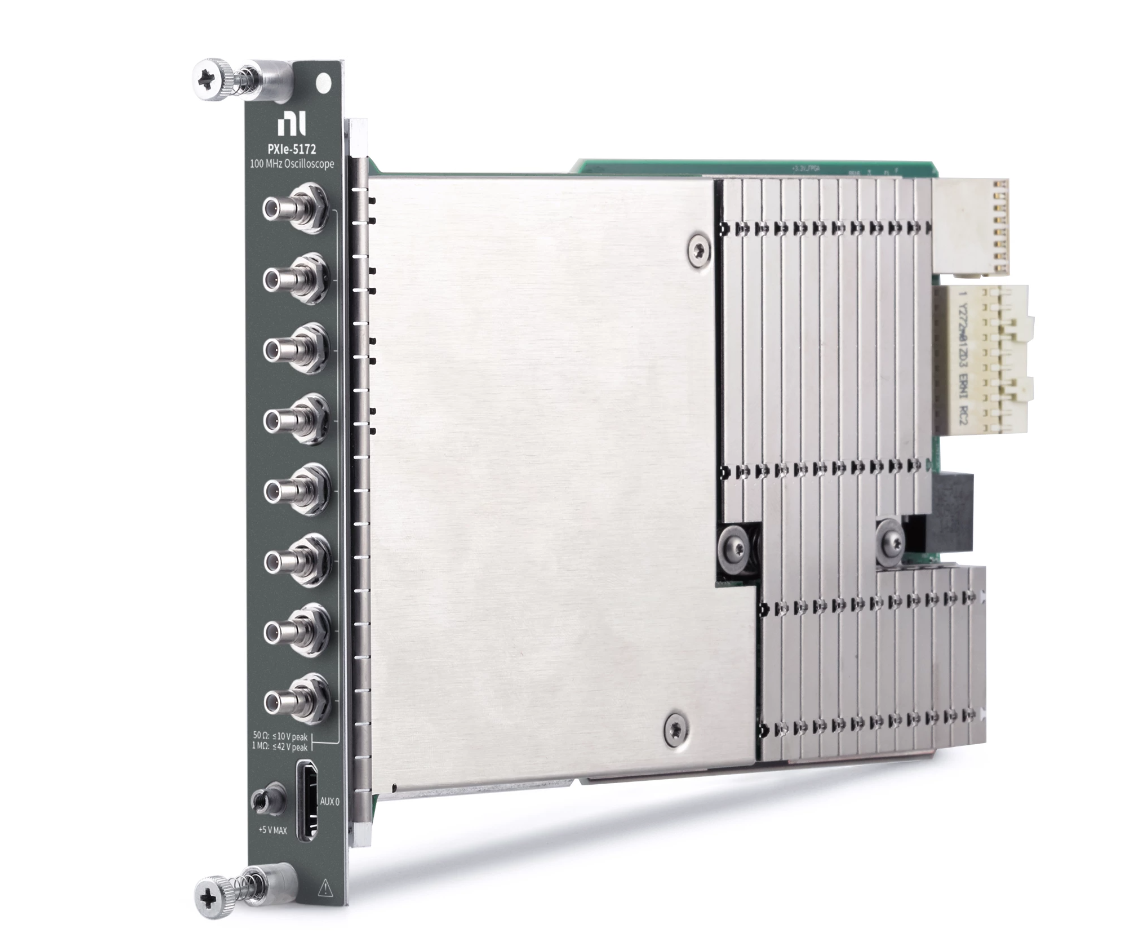

PXIe，100 MHz，4或8通道，14位，Kintex-7 325T或410T FPGA可重配置PXI示波器
PXIe-5172高密度PXI示波器具有八个同步采样通道，提供灵活的耦合和电压范围设置。 PXI示波器还具有多个触发模式、高容量板载内存和一个包含数据流和分析功能的仪器驱动程序。 该设备非常适用于需要高达250 MS/s或100 MHz模拟带宽和高级PXI同步的多通道应用。 PXIe-5172还具有可编程的Kintex7 325T或410T FPGA，可用于自定义采集、触发、信号处理和数据流盘
产品特点 ：
Product Overview:
PXIe, 100 MHz, 4 or 8 channels, 14 bits, Kintex-7 325T or 410T FPGA reconfigurable PXI oscilloscope
The PXY-5172 high-density PXI oscilloscope features eight synchronous sampling channels, offering flexible coupling and voltage range Settings. The PXI oscilloscope also features multiple trigger modes, high-capacity on-board memory, and an instrument driver that includes data streaming and analysis functions. This device is highly suitable for multi-channel applications that require an analog bandwidth of up to 250 MS/s or 100 MHz and advanced PXI synchronization. The PXIe-5172 also features programmable Kintex7 325T or 410T FPgas, which can be used for custom acquisition, triggering, signal processing and data streaming disks
Product Features:
Bus connector: PXI Express
Analog input impedance: 1 MΩ, 50 ohms
The maximum bandwidth of the oscilloscope is 100 MHz
Maximum sampling rate: 250 MS/s
Analog input voltage range: -40 V to 40 V
Analog input resolution: 14 bits
CableSense™: No
