产品概述:

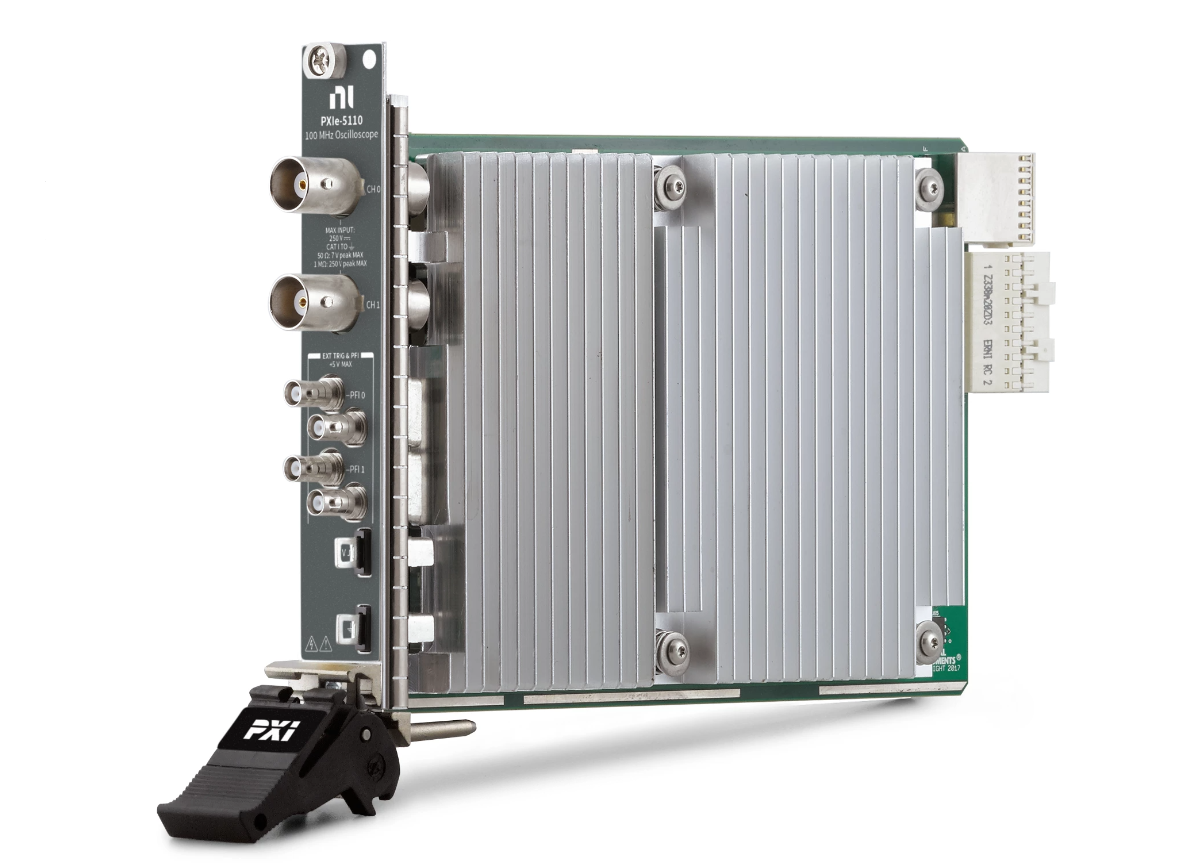

PXIe，100 MHz，1 GS/s，8位PXI示波器
PXIe-5110示波器具有两个通道，采样速率高达1 GS/s，可通过编程灵活设置耦合、输入阻抗、电压范围和滤波。PXI示波器还具有多个触发模式、高容量板载内存和一个用于实现高速数据传输的仪器驱动，同时也内置有多个分析函数。该设备非常适用于需要灵活测量配置和高达100 MHz模拟带宽的全自动化和部分自动化应用。PXIe-5110还具有高级PXI同步和数据吞吐功能。部分型号还支持CableSense™技术，该技术可以检测和定位信号路径故障、变化或不连续性。
产品特点：
Product Overview:
PXIe, 100 MHz, 1 GS/s, 8-bit PXI oscilloscope
The PXIe-5110 oscilloscope has two channels and a sampling rate of up to 1 GS/s. Coupling, input impedance, voltage range and filtering can be flexibly set through programming. The PXI oscilloscope also features multiple trigger modes, high-capacity on-board memory, and an instrument driver for high-speed data transmission. It also has multiple built-in analysis functions. This device is highly suitable for fully automated and partially automated applications that require flexible measurement configurations and up to 100 MHz analog bandwidth. The PXY-5110 also has advanced PXI synchronization and data throughput functions. Some models also support CableSense™ technology, which can detect and locate signal path faults, changes or discontinuities.
Product Features:
Bus connector: PXI Express
Analog input impedance: 1 MΩ, 50 ohms
The maximum bandwidth of the oscilloscope is 100 MHz
Maximum sampling rate: 1 GS/s
Analog input voltage range: -20 V to 20 V
Analog input resolution: 8 bits
FPGA: -
Number of voltage input channels: 2
