Description:

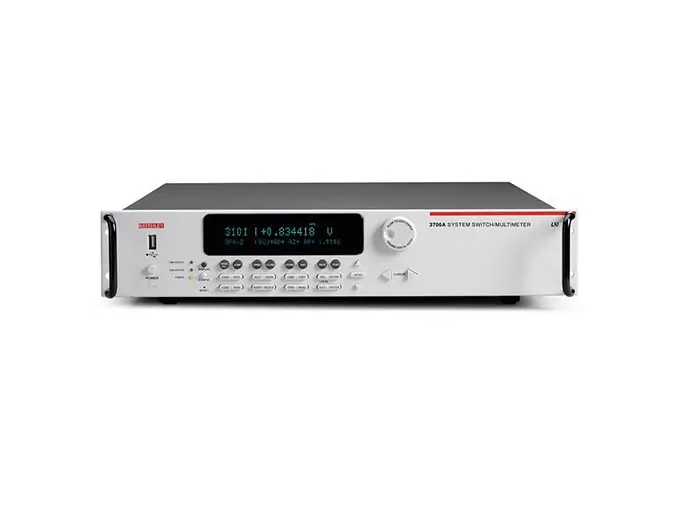

The Keithley 3706A 6-slot digital multimeter/switch system offers scalable instrument-grade switch and multi-channel measurement solutions, optimized for the automated testing of electronic products and components. The 3700A includes four versions of the 3706A system switch host, as well as an expanding series of plug-in switches and control cards. The high-performance multimeter option offers up to 7 1/2 bits of measurement and a 26-bit resolution to support your increasingly demanding test accuracy requirements. This flexible resolution offers a DC reading rate ranging from 3 1/2 bits >14,000 readings per second to 7 1/2 bits 60 readings per second to accommodate a wider range of applications. The multimeter does not use card slots, so you can maintain all six slots in the main unit. In addition, the multimeter is connected to the analog backplane of the host to ensure a high-quality signal path from each card channel to the multimeter.
Features:
6-slot system switch host, with an optional high-performance multimeter
The multi-processor architecture is optimized for high-throughput scanning and code type switching applications
Remote PC control is carried out via Ethernet, USB and GPIB interfaces
Up to 576 two-wire o
