Product Description:

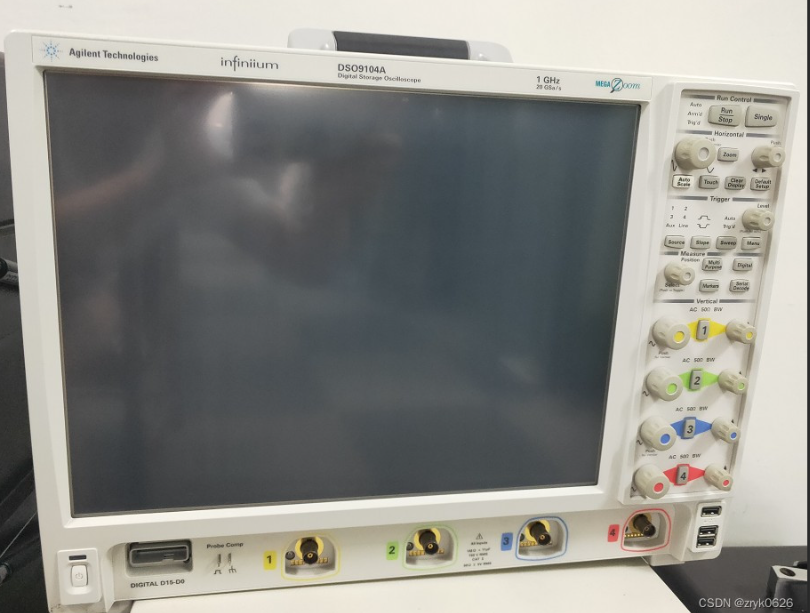

The DSO9104A features a 1GHz bandwidth and 4 analog channels, with a sampling rate up to 20GSa/s. Each channel has a standard memory capacity of 20Mpts, which can be upgraded to 1Gpts. It integrates the functions of a scope, a logic analyzer, and a protocol analyzer. It is equipped with a 15-inch XGA display screen, has a compact body with a depth of only 23 centimeters, and weighs approximately 11.8 kilograms. Product Features:
High bandwidth and high sampling rate: A 1GHz bandwidth can meet the measurement requirements of most high-frequency signals, such as those commonly found in the fields of communication and semiconductors. A 20GSa/s high sampling rate can accurately capture the details of high-speed signals, ensuring the true reproduction of the signal waveforms.
Multiple channels and large storage: 4 analog channels can simultaneously measure multiple signals, facilitating comparative analysis among signals. The standard storage depth of each channel is 20Mpts, which can be upgraded to 1Gpts, enabling long-term signal recording at high sampling rates and facilitating the capture of occasional transient signals or long-term periodic signals.
