产品描述：
SCS530n 是 Luna Innovations 旗下 T-Gauge® 系列的在线太赫兹传感器头（型号标注为 Online Sensor CID1），需搭配 T-Ray® 5000 控制单元使用，主打单侧反射式在线非接触测量，专为高速生产线的多层材料厚度、密度与缺陷在线监测设计，适配塑料、涂层、复合材料等工业场景的连续过程控制与质量检测。
核心产品特点
在线高速检测能力：适配生产线高速运动工况，支持连续扫描与实时数据输出，单帧采集速度快，可与生产线同步联动，满足工业 4.0 过程闭环控制需求。
单侧反射式测量优势：无需样品双面布站，非接触式测量避免损伤工件，可穿透非金属材料，同时获取表面与埋入层（如 EVOH 阻隔层、胶粘剂层）的厚度数据，最小可测层厚达 10-25μm（视材料而定）。
工业级可靠设计：密封金属外壳，耐受粉尘、油污等工厂环境，工作温度 0-50℃、湿度 20-90% 无冷凝；标准 1/4-20 螺纹安装接口，支持机器人 / 运动平台搭载，脐带缆（可选 5/10/30m）耐弯折、抗干扰，保障信号稳定传输。
Product Description:

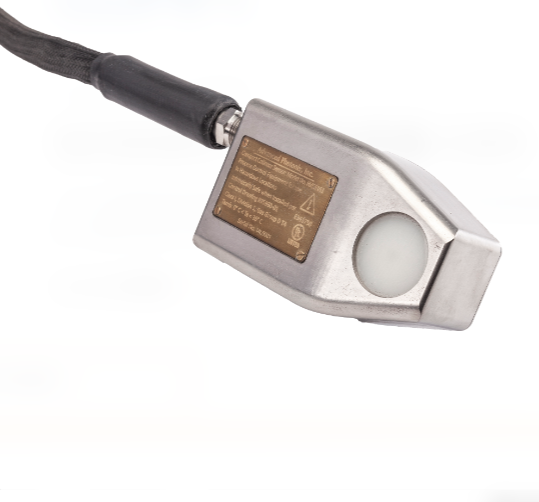

The SCS530n is an online terahertz sensor head (model marked as Online Sensor CID1) under the T-Gauge® series of Luna Innovations. It needs to be used in conjunction with the T-Ray® 5000 control unit. It mainly features single-side reflection-based online non-contact measurement, specifically designed for online monitoring of multi-layer material thickness, density, and defects in high-speed production lines. It is suitable for continuous process control and quality inspection in industrial scenarios such as plastics, coatings, and composite materials.
Core Product Features
Online High-Speed Detection Capability: Compatible with high-speed movement conditions of production lines, supporting continuous scanning and real-time data output. The single-frame acquisition speed is fast, and it can be synchronized with the production line to meet the requirements of industrial 4.0 process closed-loop control.
Single-Side Reflection Measurement Advantage: No need for samples to be placed on both sides. Non-contact measurement avoids damaging the workpiece and can penetrate non-metallic materials. At the same time, it can obtain thickness data of the surface and embedded layers (such as EVOH barrier layer, adhesive layer), with the minimum measurable layer thickness reaching 10-25 μm (depending on the material).
Industrial-grade Reliable Design: Sealed metal casing, capable of withstanding dust, oil, and other factory environments. Working temperature 0-50℃, humidity 20-90% without condensation; standard 1/4-20 threaded installation interface, supporting robot/motion platform mounting, umbilical cable (optional 5/10/30m) is resistant to bending and interference, ensuring stable signal transmission.
