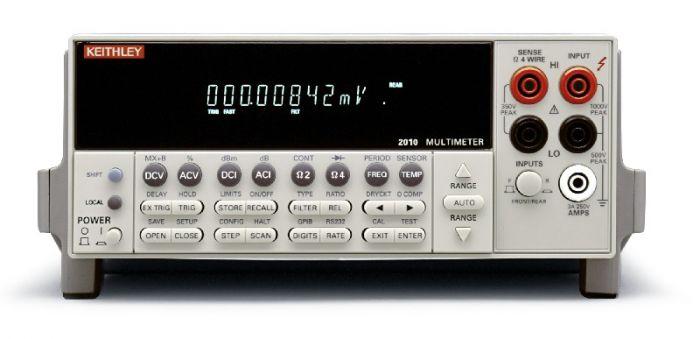

The Keithley 2010/E is a 7.5 - digit low - noise benchtop digital multimeter, belonging to the Keithley 2000 series. It combines cost - effectiveness with high resolution and is suitable for testing a variety of devices such as high - precision sensors, transducers, A/D and D/A converters. Its features are as follows:
High Resolution: With a 7.5 - digit resolution, it can provide high - precision measurement results, capable of detecting smaller changes in voltage, current or resistance, making it suitable for application scenarios that require accurate data.
Low Noise: With a noise floor of 100nV rms, the low - noise design can effectively reduce interference and noise during the measurement process, ensuring the accuracy and stability of the measurement results. This is crucial for applications that accurately measure weak signals.
High Precision: The 7ppm DCV repeatability improves the confidence in measurement accuracy.
Rich Functions: It has 15 measurement functions, including support for RTD and thermocouple temperature measurements, and also has a built - in ratio measurement function to meet various measurement needs.
Scanning Function: It has a built - in 10 - channel scanner host, which is convenient for multi - point measurement.
Special Measurement Modes: There are dry - circuit and low - power measurement modes, an offset function for compensating resistance, and four unique resistance measurement functions, which are suitable for calibrating the resistance, linearity or isolation of contacts, connectors, switches or.
D relaysiverse Communication Interfaces: It has communication interfaces such as USB, RS - 232 and GPIB, which can be connected to a computer or other data acquisition devices for data transmission and analysis.
Storage Function: The built - in memory can store up to 1000 measurement results, facilitating subsequent analysis by users.
Easy to Operate: The user - friendly interface, through intuitive menus and a large LCD display, allows for easy selection and configuration of measurement parameters. Its programmable function and automatic calibration function can also simplify the operation process and improve measurement accuracy.
