Product Overview:

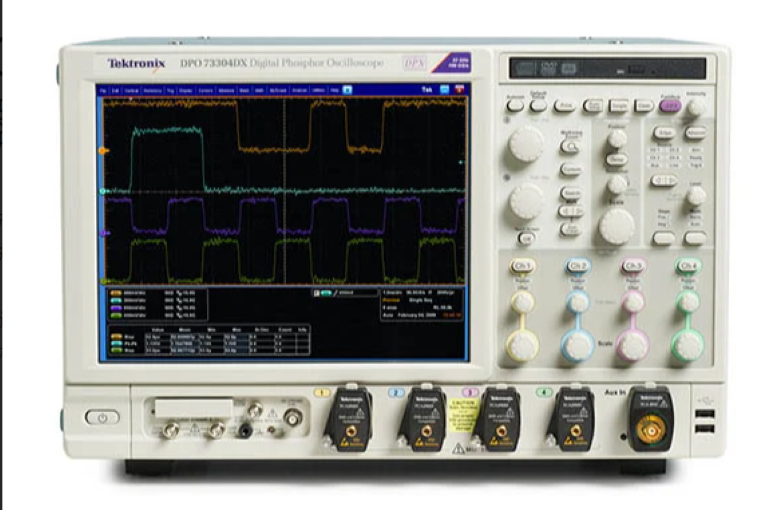

Engineers rely on oscilloscopes throughout the design process, from prototype start-up to production testing. The MSO/DPO70000DX series oscilloscopes combine extraordinary signal acquisition performance and analysis tools for unique performance to accelerate your measurement work.
Product features:
Analog broadband up to 33 GHz, up to 9 ps
The 33 GHz model has 2 channels providing true 33 GHz real-time analog bandwidth
Industry-leading high sampling rate and timing resolution
100 GS/s with 2 channels (33, 25, 20, 16 and 12.5 GHz models)
Four-channel simultaneous performance
Up to 23 GHz bandwidth
Up to 50 GS/s real-time sampling rate
Up to 500 M sample length with MultiView Zoom™ fast navigation
Fastest waveform capture rate, up to >300 per channel
