Product Description:

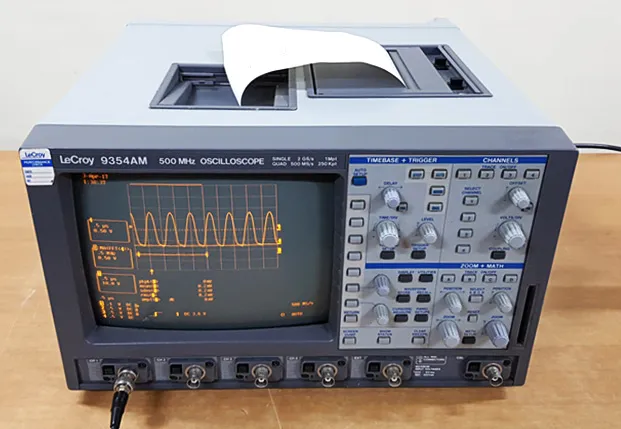

The LeCroy 9354AM oscilloscope is a graphic display device that maps electrical signals. In most applications, the graph shows how the signal changes over time: the vertical axis (Y) represents voltage, and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the z-axis.
A simple diagram of the LeCroy 9354AM oscilloscope can tell you a lot about the signal, such as: The time and voltage values of the signal, the frequency of the oscillating signal, the "moving parts" of the circuit that the signal represents, how often a particular part of the signal occurs relative to other parts, whether the faulty component distorts the signal, how much of the signal is direct current (DC) or alternating current (AC), how much of the signal is noise, and whether the noise changes over time.
Features:
Two - and four-channel versions
Maximum 8-meter recording length
DOS compatible floppy disk, PCMClA portable hard drive and
Memory card options
Innovative peak detection mode
Failure, Mode, Pass, Interval, Exit and Video triggers
8-bit vertical resolution, 11-bit ERES option
