Product Description:

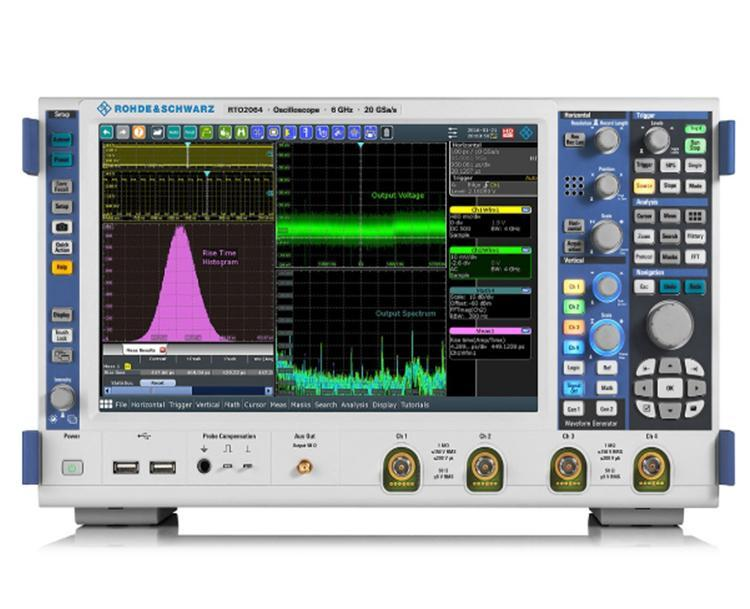

The R&S RTO oscilloscope combines outstanding signal fidelity, vertical resolution up to 16 bits, and high acquisition rates in a compact device ranging from 600 MHz to 6 GHz. They provide fully integrated multi-domain test solutions with frequency, protocol and logic analysis capabilities. The bright touch screen makes the oscilloscope very comfortable to use.
The R&S RTO oscilloscope is optimized to perform accurate measurements with high input sensitivity and very low inherent noise. The unique HD mode enables resolutions up to 16 bits. With acquisition rates of up to 1 million waveforms per second, the R&S®RTO oscilloscope can quickly detect occasional signal failures.
The R&S RTO oscilloscope is designed for multi-domain challenges and helps debug systems with different signal types. The oscilloscope can perform time, frequency, logic, and protocol analysis simultaneously, and display reference results over time. For the first time, a special tool is available for these applications: a regional trigger that can be used in both the time and frequency domains.
The R&S RTO oscilloscope is very easy to use. Gestures simplify the measurement task. With the R&S SmartGrid technology, you can even customize the waveform display. The application master room provides quick access to all available applications.
Features:
20 Gsample/s Sampling rate
2 Gsample Maximum memory depth
Vertical resolution up to 16 bits
Optional MSO 16 digital channel with RTO-B1 option
Measurements are accurate due to extremely low noise levels
