Product Description:

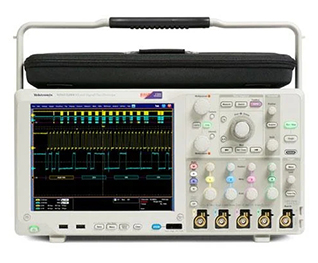

Offering up to 2 GHz bandwidth and 10 GS/s sample rate, the MSO/DPO5000 Mixed Signal Oscilloscope Series features affordable, yet powerful Windows®-based models. With over 10 different application software packages available, you can test many different applications with a single instrument. Exclusive Tektronix features such as FastAcq with DPX® technology and a superior suite of triggers enable you to quickly find intermittent events that other oscilloscopes miss. Combine that with comprehensive analysis tools and innovative Wave Inspector® controls, the MSO/DPO5000 Series provides the feature-rich tools you need to simplify and speed debug of your complex design.
Features:
-
2 GHz, 1 GHz, 500 MHz, and 350 MHz Bandwidth Models
-
Up to 10 GS/s Real-time Sample Rate on One or Two Channels and up to 5 GS/s on All Four Channels
-
Up to 250 Megapoint Record Length with MultiView Zoom™
-
>250,000 wfms/s Maximum Waveform Capture Rate with FastAcq™
-
FastFrame Segmented Memory Acquisition Mode with >310,000 Frames per Second Capture Rate
-
Standard Passive Voltage Probes with Less than 4 pF Capacitive Loading and 500 MHz or 1 GHz Analog Bandwidth
-
16 Digital Channels (MSO Series)
-
User-selectable Bandwidth Limit Filters for Better Low-frequency Measurement Accuracy
-
Suite of Advanced Triggers
