Product Overview:

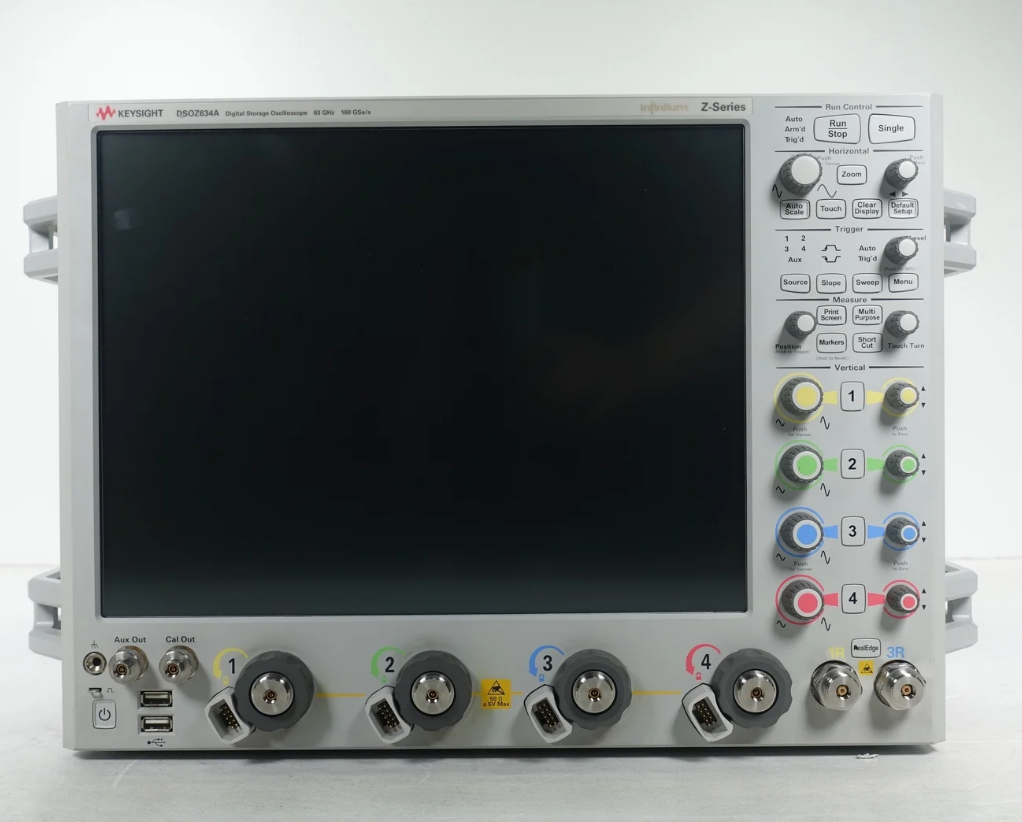

The Keysight DSOZ634A is a 4-channel 63GHz analog bandwidth Infiniium Z series oscilloscope with a maximum sampling rate of 160 GSa/s.
The DSOZ634A features a 15.4-inch XGA TFT-LCD capacitive touch screen that supports eight waveform regions and chart modes for EZJIT, InfiniiSim, Protocol, and PrecisionProbe.
The Keysight DSOZ634A is part of the Keysight Infiniium Z series of oscilloscopes, which features "RealEdge" technology that provides oscilloscope bandwidth up to 63 GHz and superior signal integrity. The Infiniium Z series uses indium phosphide chip technology and custom thin film packaging to provide extremely low noise, low jitter and high significant digits.
Features:
Bandwidth: 63 GHz
160 GSa/s sampling rate
2 Gpts memory
4 analog channels
15.4-inch capacitive touch screen display
Low noise and jitter measurement base
Up to 20 measurements can be displayed at a time
My Infiniium custom
Up to 16 features
Up to 16 FFTS at a time
The InfiniiMode function allows differential, single-ended and common-mode measurements without reconnecting the probe
Peak annotation
USB 2.0 High speed host port
USB 2.0 high-speed device port
USB 3.0 port
Dual display video output
Auxiliary output
Flip-flop output
Time base reference output
Ethernet 10/100/1000 Base-T
