Product Description:

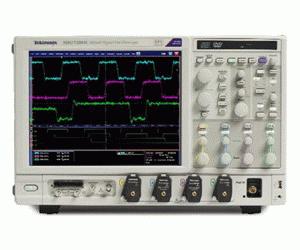

The MSO71604C is the most accurate real-time performance oscilloscope on the market. Low-noise, high-margin visibility to discover critical signal information with a 4-channel system bandwidth of 20 GHz and the highest waveform capture capability. Accurate capture using the only available hardware-based serial code type trigger with data rates up to 6.25 Gb/s. Improved system visibility with the MSO71604C, these models include 16 logical channels with a very precise 80psec timing resolution. The MSO71604C combines the signal visibility and timing capabilities of a high-performance logic analyzer with the analog accuracy, detection, and availability of a high-performance real-time oscilloscope. This makes it an ideal debugging and verification tool for demanding high-speed design applications such as DDR memory, high-performance ASics, FPgas, system-on-chip devices, and digital RF. With a faster computing platform. This new platform provides faster processing speeds for longer data records, such as jitter, noise, BER (bit error rate) measurements, and statistics. Startup and application startup times are also significantly faster.
Features:
On all four channels at the same time
20, 16, 12.5, 8, 6, and 4 GHz bandwidth models
Real-time sampling rate up to 50 GS/s
The fastest waveform capture rate with a maximum of >300,000 wfms/s per channel
