Product Description:

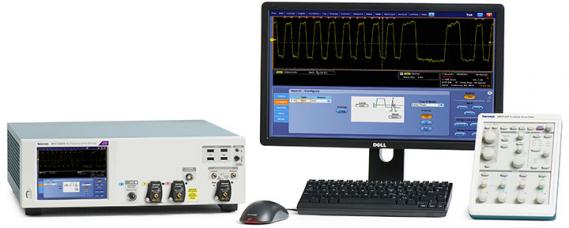

The DPO70000SX provides ultra-high bandwidth real-time signal acquisition and analysis up to 70 GHz analog bandwidth. The patented Asynchronous Time Interleaving (ATI) architecture provides the lowest noise and highest fidelity for real-time signal acquisition.
Low-noise, high-fidelity signal acquisition is critical in ultra-bandwidth applications, such as long-range coherent fiber, 400G data communications, and broadband RF. The flagship DPO77002SX model uses ATI (Asynchronous Time interlace) architecture to achieve real-time acquisition performance at 70 GHz and 200 GS/s (5 ps/ sampling). This patented symmetric architecture elegantly creates an inherent noise advantage over traditional bandwidth interweaving methods. The DPO70000SX provides the lowest noise, highest fidelity, and highest performance for complex optical modulation analysis, jitter and noise analysis of high-speed serial signals, and frequency, phase, and modulation analysis of wideband RF signals.
Features:
Low-noise 70 GHz real-time signal capture using the patented ATI architecture
Compact 5 1/4 "(3U) instrument kit for the most versatile multi-channel systems
Precise, scalable performance with the UltraSync multi-unit time synchronization bus
With >25 GHz edge trigger bandwidth and unique envelope trigger, it has the highest trigger performance
