Product Description:

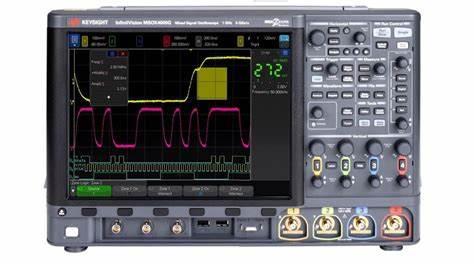

The MSOX3102G 1 GHz oscilloscope offers 2 analog channels and 16 digital channels, 4 Mpts memory and a 1,000,000 waveform/second capture rate, as well as an 8.5-inch capacitive touch screen and area touch triggering, as well as embedded software that provides waveform and measurement histograms as standard.
Features:
-
1 GHz
-
2 analog channels + 16 digital channels
-
The large 8.5-inch capacitive touch screen allows you to easily view and analyze signals
-
Unique area touch trigger technology allows you to easily isolate signals in seconds
-
The capture rate of up to 1,000,000 waveform/second gives you more detailed signal details
-
Up to 4 Mpts of memory can capture more data
