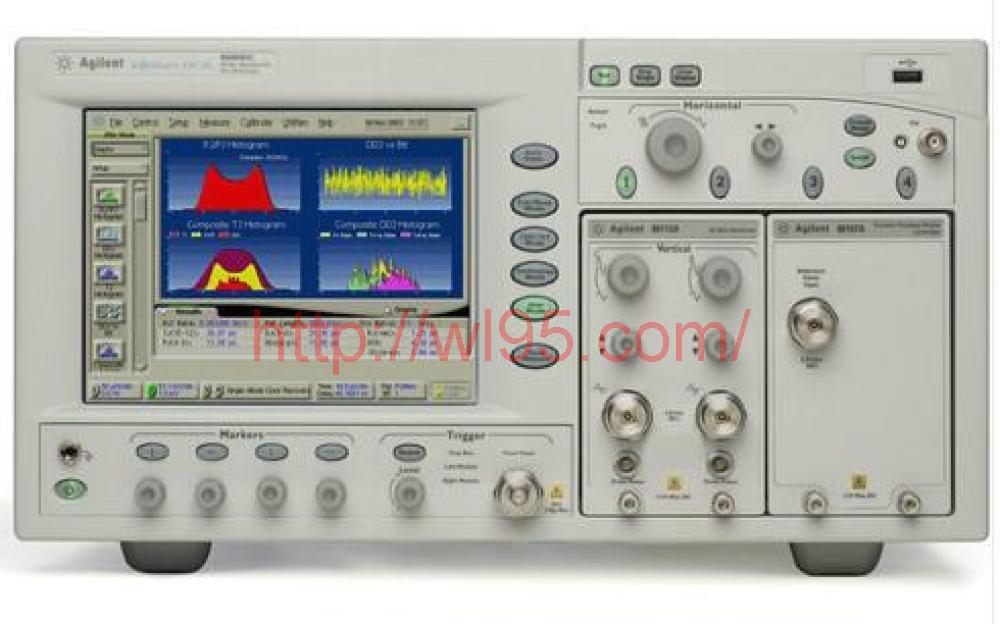

86100C数据通讯分析仪/光示波器
自动抖动分解
内建码型触发
模块化平台，支持40Gb/s波形测试
板宽的速率覆盖
兼容agilent 86100A/B,83480A 系列和54750系列模块
200fs固有抖动
开放的操作系统-Windows xp PRO
***的眼图分析对于测量100MB/S和40GB/S的发射机质量至关重要。
Agilent 86100C是为分析数字通信波形和复杂任务***设计。一致性模板测试和参数测试不再要求复杂的设置和配置顺序，你只需按一个键，就可以斤毫年升毫年个***一致性测试。你可以获得所需的重要测量，包括：
业内标准模板测试，内置冗余度分析功能
消光比测量，改善了精度和可重复性
眼图测量－－交叉%，眼高和眼宽，“1”和“0”电平，抖动，上升时间或下降时间等等。
***测量光通信波形的关键是光接收机。86100C在仪器内集成了***泛的***接收机。
内置光电二极管，具有平坦频响，实现的波形保真度。这为消光比测量提供了极高的精度。
基于标准的发射机一致性测量要求滤波响应。86100C拥有一系列滤波型组合，86100C可以吨度年个个微度 GPIB或使用前面板按键，在测量信道中远程自动地、可重复地打开或关闭滤波器。整个测量通道的频响已经标准，在长期使用时保持其性能。
集成光接收机提供了校准后的光信道。借助集成到模块中***的光接收机，光信号以光功率单位***地进行显示。
86100C Data Communication Analyzer/Optical Oscilloscope
Automatic jitter decomposition
Built-in pattern trigger
Modular platform, support 40Gb/s waveform test
Rate coverage of board width
Compatible with agilent 86100A/B, 83480A series and 54750 series modules
200fs inherent jitter
Open operating system-Windows xp PRO
***Eye diagram analysis is essential for measuring the quality of 100MB/S and 40GB/S transmitters.
Agilent 86100C is designed for analyzing digital communication waveforms and complex tasks. Consistency mask testing and parameter testing no longer require complicated settings and configuration sequences. You only need to press a key to increase the consistency test. You can get the important measurements you need, including:
Industry standard mask test, built-in redundancy analysis function
Extinction ratio measurement improves accuracy and repeatability
Eye diagram measurement-cross %, eye height and eye width, "1" and "0" levels, jitter, rise time or fall time, etc.
***The key to measuring the optical communication waveform is the optical receiver. The 86100C integrates the most extensive receiver in the instrument.
Built-in photodiode, with flat frequency response, realizing waveform fidelity. This provides extremely high accuracy for extinction ratio measurement.
Standards-based transmitter compliance measurements require a filtered response. The 86100C has a series of filter combinations. The 86100C can use the GPIB or use the front panel buttons to remotely, automatically and repeatably turn on or off the filter in the measurement channel. The frequency response of the entire measurement channel has been standardized, maintaining its performance in long-term use.
The integrated optical receiver provides a calibrated optical channel. With the help of the optical receiver integrated into the module, the optical signal is displayed in optical power units.
