描述
为性能，分析和整体用户体验

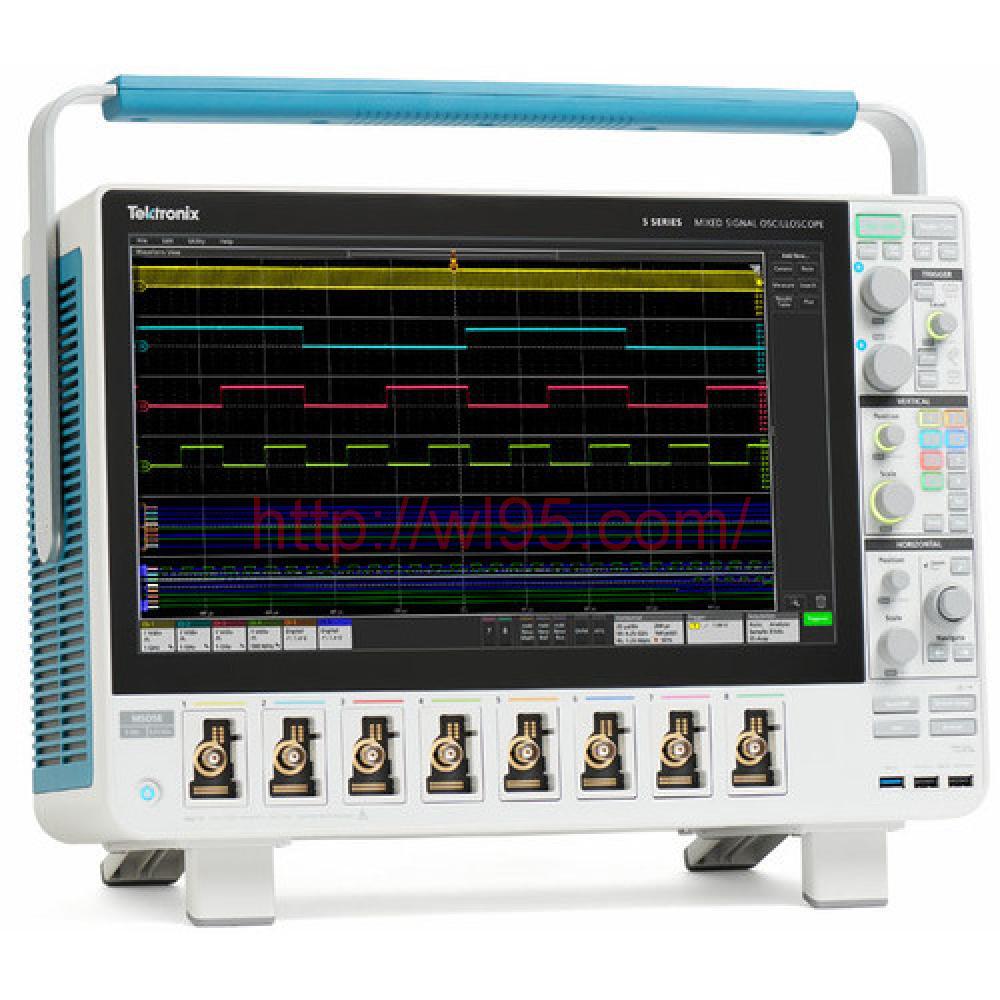

树立新标准MSO58具有创新的捏合缩放触摸屏用户界面，业界最大的高清显示屏以及4个FlexChannel™输入，可让您测量一个模拟或四个数字信号。
更高的采样率和更长的记录长度
MSO58 5系列MSO提供了数字通道集成的新水平。数字通道共享相同的高采样率（高达6.25 GS / s）以实现精细的定时分辨率，并具有较长的记录长度（高达125 Mpoints）以长时间捕获与模拟通道一样的信号。上一代MSO需要权衡，数字通道的采样率或记录长度要比模拟通道低。
FlexChannel™技术可实现最大的灵活性并具有更广泛的系统可视性
FlexChannel技术可将仪器上的每个输入用作单个模拟通道或八个数字通道。只需将TLP058逻辑探头连接到任何输入即可完成转换。想象一下它提供的灵活性和可配置性。
FlexChannel技术：每个通道可以是单个模拟或8数字输入
MSO58可以配置为查看8个模拟和零数字信号。或七个模拟和八个数字，依此类推。您可以随时通过简单地添加或删除TLP058逻辑探头来更改配置，因此您始终拥有正确数量的数字通道。
专为触摸
而设计的用户界面5系列MSO的15.6英寸显示器包括一个电容式触摸屏，并提供了业界首个真正为触摸而设计的示波器用户界面。您在手机和平板电脑上使用的触摸交互以及在支持触摸的设备中所期望的触摸交互都是：在5系列MSO中受支持。
体验性能差异
MSO58具有高达2 GHz的模拟带宽，6.25 GS / s的采样率，标准的62.5 M记录长度和12位模数转换器（ADC），可提供您捕获最佳波形所需的性能。可能的信号保真度和分辨率，可查看小的波形细节。
Description
Setting New Standards for Performance, Analysis, and Overall User Experience
The MSO58 has a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4 FlexChannel™ inputs that let you measure one analog or four digital signals.
Higher Sample Rates and Longer Record Lengths
The MSO58 5 Series MSO offers a new level of integration of digital channels. Digital channels share the same high sample rate (up to 6.25 GS/s) for fine timing resolution, and long record length (up to 125 Mpoints) for long time captures as analog channels. Previous-generation MSOs required tradeoffs, with digital channels having lower sample rates or shorter record lengths than analog channels.
FlexChannel™ technology enables maximum flexibility and broader system visibility
FlexChannel technology enables each of the inputs on the instrument to be used as a single analog channel or eight digital channels. The conversion is done by simply attaching a TLP058 logic probe to any input. Imagine the flexibility and configurability this provides.
FlexChannel Technology: Each Channel Can be a Single Analog, or 8-Digital Input
The MSO58 can be configured to look at eight analog and zero digital signals. Or seven analog and eight digital, and so on. You can change the configuration at any time by simply adding or removing TLP058 logic probes, so you always have the right number of digital channels.
User Interface Designed for Touch
The 5 Series MSO's 15.6" display includes a capacitive touchscreen and provides the industry's first oscilloscope user interface truly designed for touch. The touch interactions that you use with phones and tablets, and expect in a touch-enabled device, are supported in the 5 Series MSO.
Experience the Performance Difference
With up to 2 GHz analog bandwidth, 6.25 GS/s sample rates, standard 62.5 M record length and a 12-bit analog to digital converter (ADC)
