描述
更快的速度。最低的噪音。卓越的测量信心。

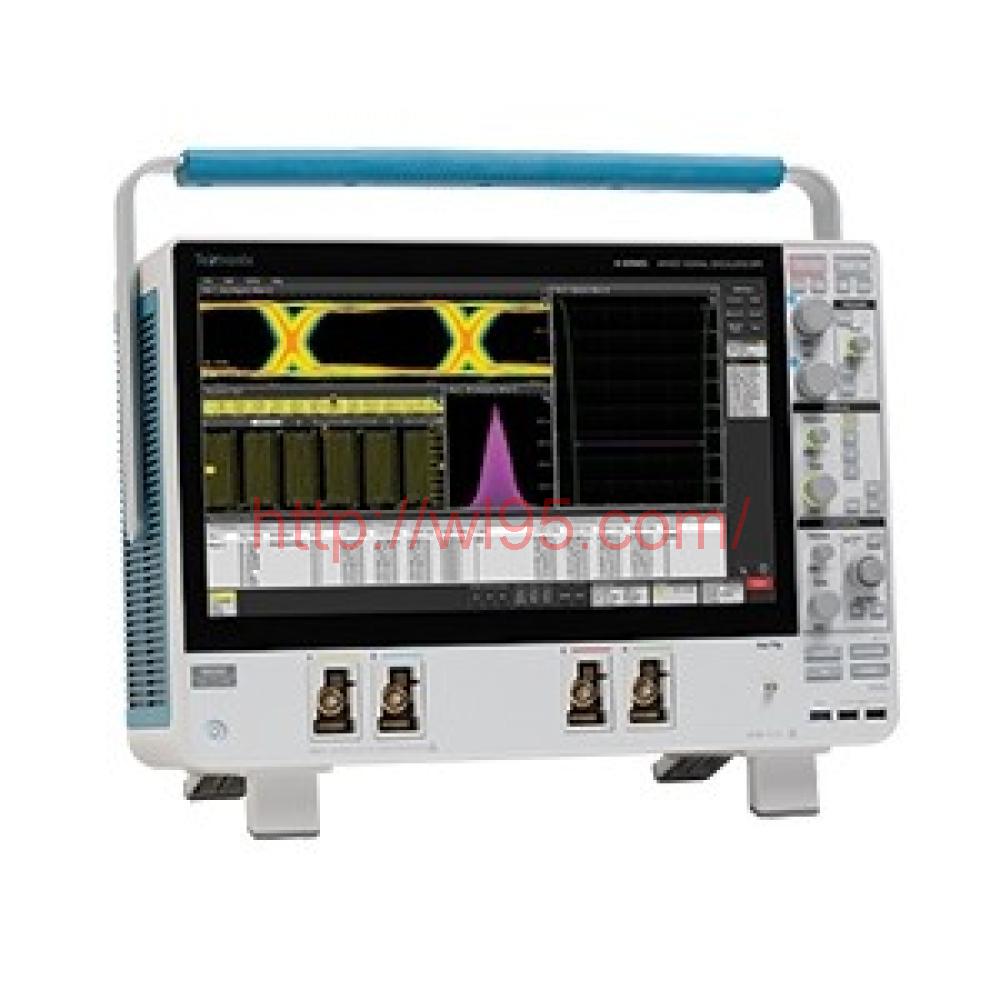

泰克6系列MSO为分析和调试当今的嵌入式系统提供了出色的信号保真度。6系列MSO极具创新性的捏合缩放触摸屏用户界面，加上业界最大的高清显示屏和4个FlexChannel®输入，可让您测量每个通道一个模拟或八个数字信号，可以应对当今最严峻的挑战，也可以应对明天的挑战。
6系列MSO提供了数字渠道集成的新水平。数字通道与模拟通道共享相同的高采样率（高达25 GS / s）以实现精细的定时分辨率，并具有较长的记录长度（高达250 Mpoints）以长时间捕获，而没有通常的权衡：模拟通道具有较低的采样率或记录长度比模拟通道短。
节省嵌入式系统设计人员的时间，保护投资
新的6系列MSO扩展了中型示波器的性能阈值，可在所有4个通道上同时提供25 GS / s的采样率。MSO64还通过其低噪声输入提高了测量的信心，尤其是在最重要的最高灵敏度设置下。例如，现代嵌入式设计需要干净，精确控制的直流电源来为ASIC和FPGA器件供电。对于此类应用，6系列MSO使设计人员能够以更高的分辨率和精度测量直流电源轨，从而缩短了了解设计中电源轨高频影响因素的时间。
信号细节的新水平
为了满足对更快信号的更多了解的需要，6系列MSO集成了新的低噪声前置放大器ASIC TEK061，可显着降低噪声，尤其是对于峰值峰值为数百毫伏的信号。 -峰。凭借其在四个通道上的25 GS / s采样率，该仪器在使用高分辨率模式时可在200 MHz下提供16位分辨率。这意味着，您不仅可以在电源轨上看到干扰信号，而且还能以一定的精度进行测量，而到目前为止，这在示波器上是不可能的。
lexChannel®技术可实现最大的灵活性并具有更广泛的系统可视性
6系列MSO重新定义了混合信号示波器（MSO）的外观。FlexChannel技术使仪器上的每个输入都可以用作单个模拟通道或八个数字通道。只需将TLP058逻辑探头连接到任何输入即可完成转换。想象一下它提供的灵活性和可配置性。您可以随时通过简单地添加或删除TLP058逻辑探头来更改配置，因此您始终拥有正确数量的数字通道。您可以根据需要连接任意数量的TLP058探头，最多支持32个数字通道。
前所未有的信号查看功能
6系列MSO令人惊叹的15.6英寸（396毫米）显示屏是业内最大的显示屏。它还是最高分辨率的显示屏，具有全高清分辨率（1,920 x 1,080），可让您查看许多信号同时为关键的读数和分析提供了充足的空间，优化了查看区域，以确保最大的垂直空间可用于波形，并且利用了您在手机和平板电脑上使用的触摸互动功能，并期望在支持触摸功能的设备中：
数字电压表（DVM）和触发频率计数器
6系列MSO包含一个集成的4位数字电压表（DVM）和8位触发频率计数器。任何模拟输入都可以用作电压表的源，使用与常规示波器相同的探头。计数器可以非常精确地读出您触发的触发事件的频率。DVM和触发频率计数器均可免费使用，并且在注册产品时会被激活。
新的高性能探头选项
为了更轻松地连接快速信号，泰克提供了一系列高性能探头，非常适合6系列MSO的性能水平。TDP7700是一系列TriMode™探头，带宽为4、6或8 GHz。TriMode探头使您能够进行高速总线分析所需的单端，差分和共模信号测量，而无需移动或更改探头。这些探头使用TekFlex™连接器技术，可在探头尖端放置有源缓冲器，以实现最佳信号保真度，同时限制微小测试点上的机械应力，并支持与被测设备的多种连接方法，包括烙铁头，直接连接和手持浏览。此外，TAP4000和TDP4000探头扩展了Tektronix流行的有源，
是否使用Windows –您可以选择
6系列MSO为您提供是否包括Microsoft Windows™操作系统的选择。打开仪器底部的检修面板将显示与固态驱动器（SSD）的连接。如果没有SSD，则该仪器将作为专用示波器启动，无法运行或安装其他程序。
在需要时提供帮助
6系列MSO包含几个有用的资源，因此您无需查找手册或访问网站即可快速回答问题：
Description
More speed. Lowest noise. Exceptional measurement confidence.
Tektronix 6 Series MSO provides excellent signal fidelity for analyzing and debugging today's embedded systems. The remarkably innovative pinch-swipe-zoom touchscreen user interface coupled with the industry's largest high definition display and 4 FlexChannel® inputs that let you measure one analog or eight digital signals per channel, the 6 Series MSO is ready for today's toughest challenges and tomorrow's too.
The 6 Series MSO offers a new level of integration of digital channels. Digital channels share the same high sample rate (up to 25 GS/s) for fine timing resolution, and long record length (up to 250 Mpoints) for long time captures as analog channels without the usual tradeoffs: digital channels having lower sample rates or shorter record lengths than analog channels.
Saves Embedded Systems Designers Time, Protects Investments
The new 6 Series MSO extends the performance threshold of midrange oscilloscopes delivers a 25 GS/s sample rate simultaneously on all 4 channels. The MSO64 also boosts measurement confidence with its low-noise inputs especially at the highest sensitivity settings where it matters most. For example, modern embedded designs require clean, precisely-controlled DC power supplies to feed ASIC and FPGA devices. For such applications, the 6 Series MSO enables designers to measure DC power rails with more resolution and accuracy, reducing the time it takes to understand high frequency influencers on power rails in a design.
New levels of signal detail
To meet the need for more insight on faster signals, the 6 Series MSO incorporates a new low-noise preamplifier ASIC, the TEK061, that dramatically lowers noise, especially on signals that are in the hundreds of millivolts peak-to-peak. With its 25 GS/s sample rate on four channels, the instrument delivers 16-bit resolution at 200 MHz when using the High Res mode. This means that not only can you see the interfering signals on their power rail, but you'll measure them with a level of accuracy, that until now has not been possible on a scope.
FlexChannel® technology enables maximum flexibility and broader system visibility
The 6 Series MSO redefines what a Mixed Signal Oscilloscope (MSO) should be. FlexChannel technology enables each of the inputs on the instrument to be used as a single analog channel or eight digital channels. The conversion is done by simply attaching a TLP058 logic probe to any input. Imagine the flexibility and configurability this provides. You can change the configuration at any time by simply adding or removing TLP058 logic probes, so you always have the right number of digital channels. You can connect as many TLP058 probes as you like, enabling up to a maximum of 32 digital channels.
Unprecedented signal viewing capability
The stunning 15.6" (396 mm) display in the 6 Series MSO is the largest display in the industry. It is also the highest resolution display, with full HD resolution (1,920 x 1,080), enabling you to see many signals at once with ample room for critical readouts and analysis. The viewing area is optimized to ensure that the maximum vertical space is available for waveforms. And it employs the touch interactions that you use with phones and tablets, and expect in a touch enabled device:
Digital Voltmeter (DVM) and Trigger Frequency Counter
The 6 Series MSO contains an integrated 4-digit digital voltmeter (DVM) and 8-digit trigger frequency counter. Any of the analog inputs can be a source for the voltmeter, using the same probes that are already attached for general oscilloscope usage. The counter provides a very precise readout of the frequency of the trigger event on which you're triggering. Both the DVM and trigger frequency counter are available for free and are activated when you register your product.
New high-performance probe options
For easier connection to fast signals, Tektronix offers a series of high-performance probes that are well-suited to the performance levels of the 6 Series MSO. The TDP7700 is a series of TriMode™ probes with bandwidths of 4, 6 or 8 GHz. TriMode probes enables you to make the single-ended, differential, and common mode signal measurements required for high-speed bus analysis, without moving or changing probes. These probes use the TekFlex™ connector technology which places active buffers at the probe tip for the best signal fidelity while limiting mechanical stress on tiny test points and supports a variety of connectivity methods to the device under test including solder-in tips, direct connection and handheld browsing. Additionally, the TAP4000 and TDP4000 probes extend the range of Tektronix' popular active, single-ended and differential probes, respectively, and now support up to 4 GHz bandwidth.
Windows or not — you choose
The 6 Series MSO offers you the choice of whether to include a Microsoft Windows™ operating system. Opening an access panel on the bottom of the instrument reveals a connection for a solid state drive (SSD). When the SSD is not present, the instrument boots as a dedicated scope with no ability to run or install other programs.
Help when you need it
The 6 Series MSO includes several helpful resources so you can get your questions answered rapidly without having to find a manual or go to a website:
