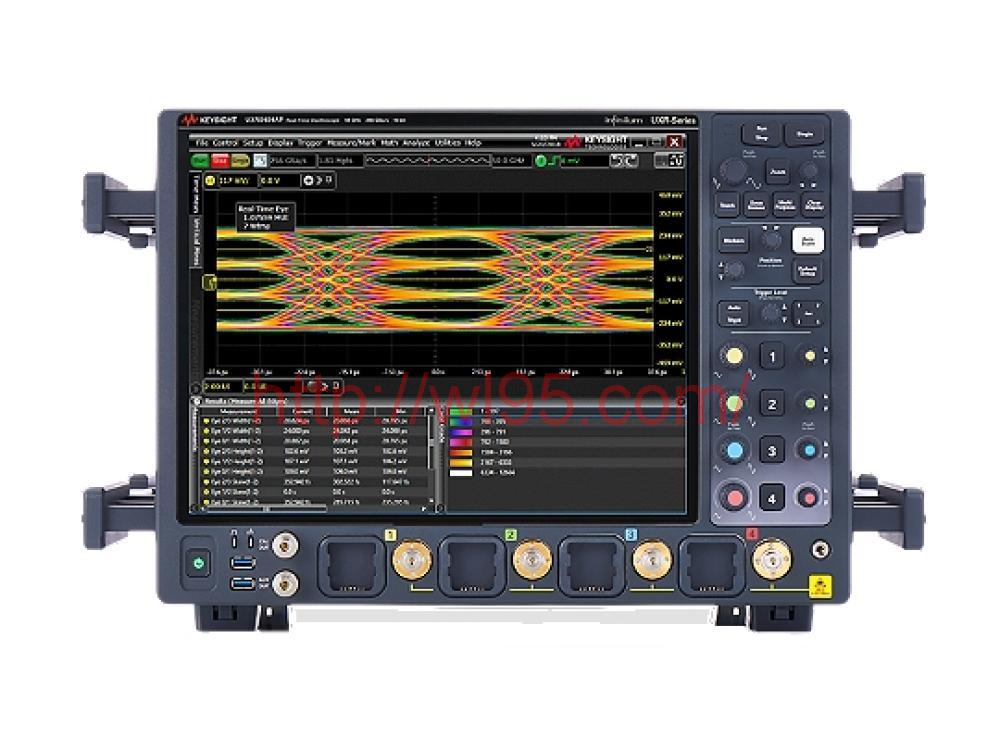

UXR-Series Real-Time Infiniium Oscilloscopes
-
Achieve next-generation technology break throughs with upgradable bandwidths from 13 GHz to 110 GHz
-
Enable higher modulation standards with 10-bit ADC and superior ENOB performance
-
See the truest representation of your signal with ultra-low noise floor
-
Reduce the timing error of your dual-polarization coherent modulation with 4 full-bandwidth channels in one instrument
-
Industry’s most accurate real-time oscilloscope
-
Full bandwidth and channel upgradability
-
The industry’s highest ENOB at bandwidths up to 110 GHz
-
Industry’s lowest noise floor with less than 1 mVrms of noise
-
Industry’s lowest jitter with less than 25 fsrms of intrinsic jitter and less than 35 fsrms of inter-channel jitter
Main features and functions：
-
40 GHz bandwidth
-
4 full bandwidth channels
-
10 bit ADC
-
256 GSa/s sample rate on all channels
-
Up to 2 Gpts of memory
-
Upgradable to 110 GHz
-
Optional calibration module for on-site self-calibration
-
High-speed SDA and Clock Recovery included
-
User Defined functions included
-
1 mm connector inputs
