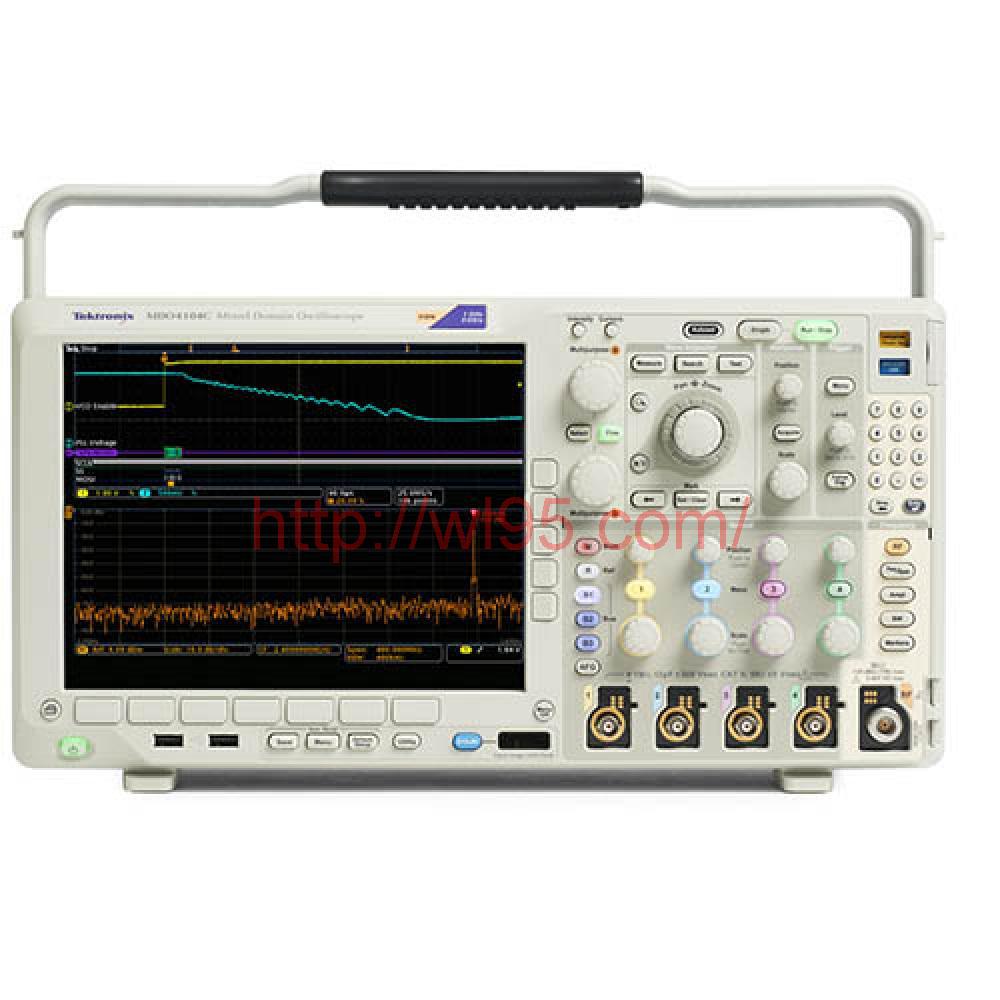

Standard passive voltage probes with 3.9 pF capacitive loading and 1 GHz or 500 MHz analog bandwidth
2. Spectrum Analyzer (Optional)
Frequency range of 9 kHz - 3 GHz, or 9 kHz 6 - GHz
Ultrawide capture bandwidth ≥1 GHz
Timesynchronized capture of spectrum analyzer with analog and digital acquisitions
Frequency vs. time, amplitude vs. time, and phase vs. time waveforms
3. Arbitrary/Function Generator (Optional)
13 predefined waveform types
50 MHz waveform generation
128 k arbitrary generator record length
250 MS/s arbitrary generator sample rate
4. Logic Analyzer (Optional) 16 digital channels
20 M record length on all channels
60.6 ps timing resolution
5. Protocol Analyzer (Optional)
Serial bus support for I2C, SPI, RS232/422/485/UART, USB 2.0, Ethernet, CAN, LIN, FlexRay, MILSTD1553, and Audio standards
6. Digital Voltmeter/Frequency Counter (Free with product registration)
4-digit AC RMS, DC, and AC+DC RMS voltage measurements
5-digit frequency measurements
Applications
Embedded Design: Discover and solve issues quickly by performing system level debug on mixed signal embedded systems, including today's most common serial bus and wireless technologies
Power Design: Make reliable and repeatable voltage, current, and power measurements using automated power quality, switching loss, harmonics, ripple, modulation, and safe operating area measurements with wide selection of power probes
EMI Troubleshooting: Quickly track down source of EMI in embedded systems by determining which time domain signals may be causing unwanted EMI
See effects time domain signals have on system EMI emissions in real-time
Wireless Troubleshooting: Enables viewing entire system (analog, digital, and RF) time-synchronized to understand true system behavior
Capture ultrawide band in single capture to view interactions among multiple wireless technologies, or to view entire broadband frequency range from modern standard like 802.11/ad
Education
Eliminates need to manage multiple instruments by integrating six instrument types into single unit
Integration of spectrum analyzer enables teaching of advanced wireless technology courses, while minimizing investment
Full upgradability enables adding functionality over time as needs change or budgets allow
Manufacturing Tests and Troubleshooting: Unique, 6-in-1 design minimizes rack or bench space by integrating multiple instruments into single, small package
Integration reduces costs associated with utilizing multiple different instrument types in manufacturing tests, or at troubleshooting stations
