同等带宽，树立性能和价格新标杆
在直观显示方面树立性能新标杆
新的集成标准

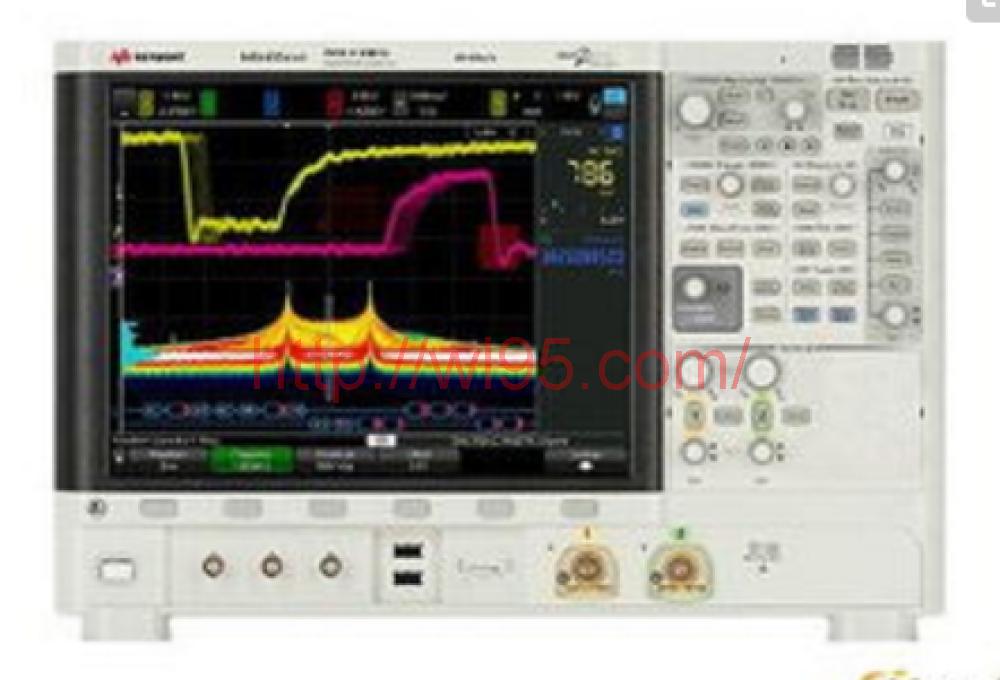

InfiniiVision 6000 X 系列示波器在性能和价格方面树立了便携式高性能示波器的新标杆。这些示波器专为对带宽、可视功率和灵活性要求严苛的工程师而设计，它们在便携式封装中集成了多种仪器的功能，并且提供用户熟悉的嵌入式操作系统用户界面和令人心动的价格。
InfiniiVision 6000 X 系列具有业界尺寸最大的 12.1 英寸多点触控触摸屏和语音控制功能，使用起来极其简便。这是因为示波器采用“触摸屏”设计，可以让您花费更少的时间进行示波器设置，集中精力完成设计和测试任务。并且，借助创新的 InfiniiScan 画图触发特性，您只需在关注信号周围绘制一个方框，便可使用示波器在信号上触发。
6000 X 系列凭借每秒超过 45 万次波形的波形捕获率在直观显示方面树立了新标杆，帮助您查看更多的信号细节以增强设计信心。标配分段存储器可将示波器转换为高效的超深存储器捕获工具。
每台 6000X 系列示波器的每个通道均标配一个探头。
Description:
The New Bandwidth Standard: Capture higher-frequency waveforms
The IniniiVision 6000 X-Series oscilloscopes are designed for the most demanding engineers who want bandwidth, visualization power and the flexibility that comes with integrated capabilities, in a portable package with a familiar embedded OS user interface — all at an affordable price. The IniniiVision 6000 X-Series delivers to 6 GHz bandwidth and a 20-GSa/s sampling rate so you can confidently measure signals with rise times faster than 150 ps or signals with higher than 2 Gbps NRZ (non-return to zero) data signal rates.
New visualization standard: Isolate waveforms of interest
Additionally, the 6000 X-Series set the new visualization standard with an industry-leading 450,000 waveforms-per-second update rate that lets you see more of your signal behavior so you have more confidence in your design. Standard segmented memory turns the oscilloscope into an effective ultra-deep memory capture tool.
Portability and a familiar embedded OS user interface
With the industry's largest 12.1-inch capacitive touch screen with multi-touch and voice control, you may be surprised just how easy it is to use the InfiniiVision 6000 X-Series. It is "designed for touch," so you spend less time setting up your scope and more time designing and testing. And capabilities such as the innovative InfiniiScan Zone touch trigger let you simply draw a box around the signals of interest, and the scope creates the trigger for you.
Integrate a digital bus:
With 16 integrated digital channels probed by a newly designed digital channel cable, you now have up to 20 channels of time-correlated triggering, acquisition, and viewing on the same instrument. This capability is especially important in today's embedded designs with sophisticated digital control circuitry.
