Product Description:

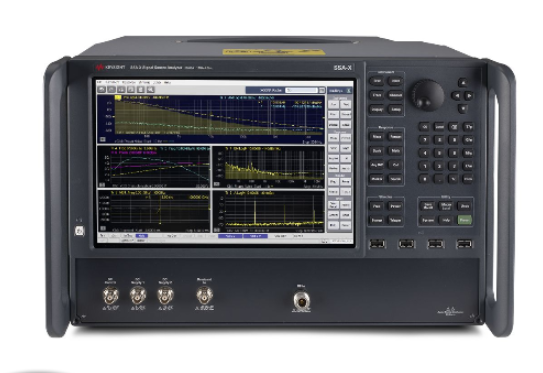

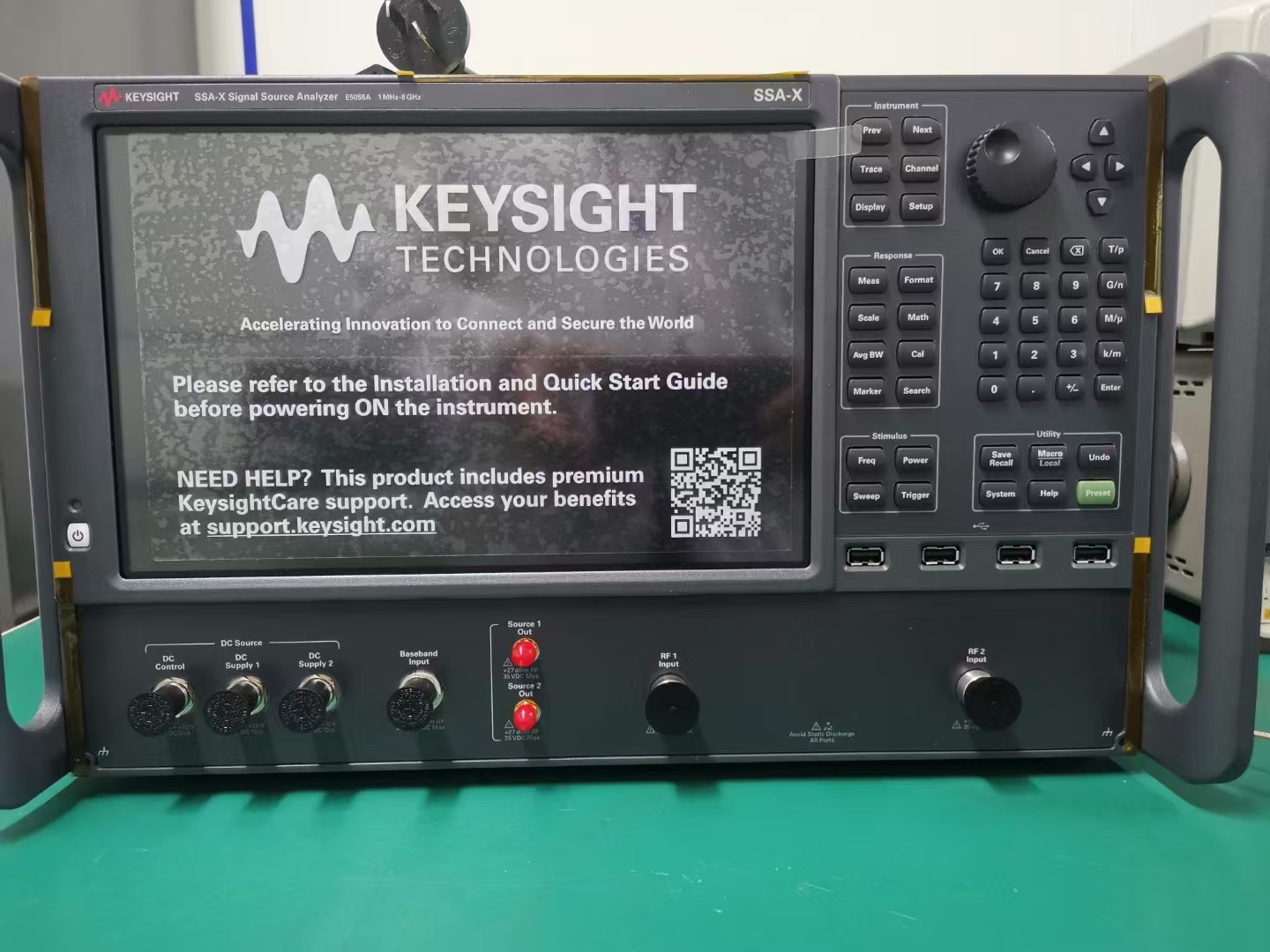

The E5055A SSA-X signal source analyzer is the next generation benchtop signal source solution for wireless communications, high-speed digital, and aerospace and defense applications. The E5055A offers exceptional performance with an RF frequency range of 1 MHz to 8 GHz, a phase noise offset frequency of 0.01 Hz to >1 GHz, and advanced system noise sensitivity of -175 dBc/Hz (typical value). Optimize measurement throughput and accuracy with flexible measurement Settings.
Flexible measurement Settings and modern user interfaces improve measurement efficiency, while application support through software expands the measurement range to meet new requirements. Ultra-low background noise and cross-correlation method are used to improve the accuracy and precision of phase noise measurement.
Features:
Frequency range: 1 MHz to 8 GHz
Minimum offset frequency: 1 millihertz
Input power range: -50 dBm to +20 dBm (typical value)
Allan bias: 4.0 x 10E-13 for tau (τ) = 1 second
