Product Description:

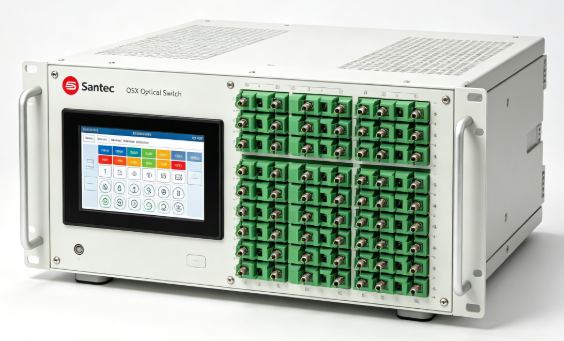

The OSX-100 is a customizable benchtop/rack-mounted instrument ideal for high volume manufacturing production testing.
Available in single mode or multi-mode, the number of channels ranges from 1x2 to 1x400.
Additional public input can be achieved by adding 1xN or 2B or 2C configurations. A variety of other path routing configurations are available upon request.
The switch can be controlled via USB or Ethernet. The baffle on the front panel can be installed with FC, SC, or LC connectors.
Product features:
Up to 400 outputs
Ultra-low IL < 0.5dB
± 0.005 dB repeatability
Crosstalk < -80 dB
customizable
Product Application:
Mass production test
Multidevice testing
Test automation
Paired with RLM for multi-fiber testing
