Product Overview:

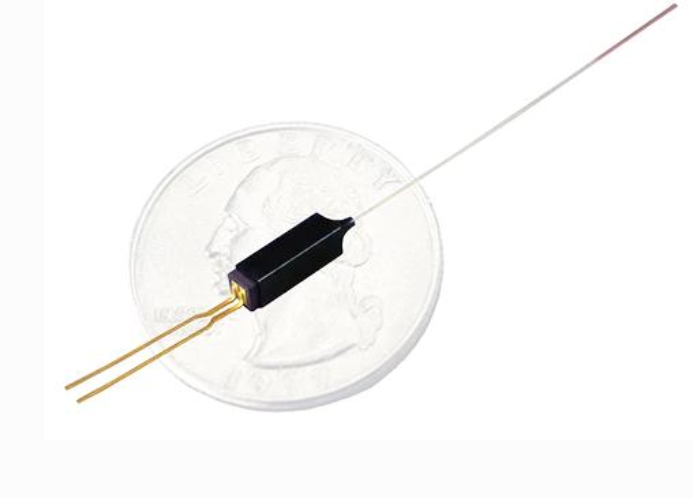

COVA-1 is an ultra-compact optical variable attenuator based on electrostatic MEMS technology. The volume ratio of COVA-1 is reduced by 82% compared to our current MOVA-1. The COVA-1 is ideally suited for high-density integration in the next generation of small-size packages.Attenuation: 40 dB, Insertion Loss: 0.8 dB, Return Loss: 45 dB, Polarization Dependent Loss: 0.4 dB, Operating Wavelength: 1530 to 1570 nm (C band), 1570 to 1610 nm (L band).
Product features:
Ultra-compact size
Light/dark type available
Low power consumption
Conforms to Telcordia GR-1221 standard
Shock and vibration resistant design
The minimum bending radius of the optical fiber is 5 mm
