Product Overview:

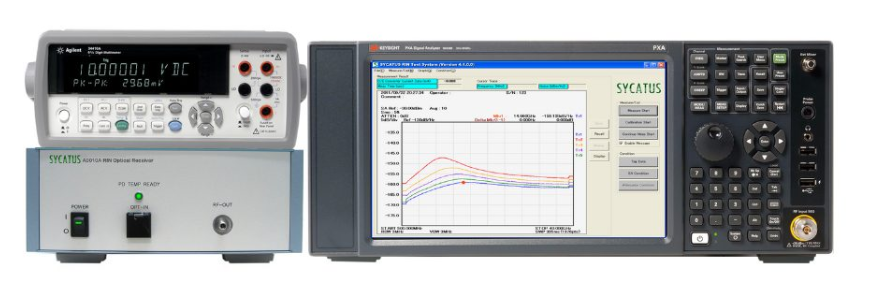

The SYCATUS A0010A RIN measurement system consists of SYCATUS optical receiver, RIN test software, X-series signal analyzer and digital multimeter. The system can accurately measure the relative intensity noise (RIN) of the laser and provide key data support for the development, production and quality control of the laser.
Product features:
High bandwidth: The SYCATUS A0010A RIN measurement system supports measurement bandwidth up to 40GHz, which can meet the needs of high-speed, multi-stage fiber transmission systems to test the RIN characteristics of lasers.
High accuracy: By integrating a 40GHz high-sensitivity, low-noise optical receiver with Keysight's high-performance X-Series signal analyzer, combined with SYCATUS 'unique calibration method, the system guarantees high accuracy and repeatability of the test.
Multi-wavelength support: The operating wavelength range of the system is 800~1625nm, supporting single mode/multi-mode switching, suitable for a variety of wavelengths of laser testing.
Simple calibration: SYCATUS has developed a new calibration method for RIN test systems that simplifies the calibration process and increases test efficiency.
Remote operation: The optical attenuator is a system option that can be controlled remotely through system software to adjust the optical power input to the optical receiver, further improving test repeatability while avoiding damage to the optical receiver.
