Product Overview:

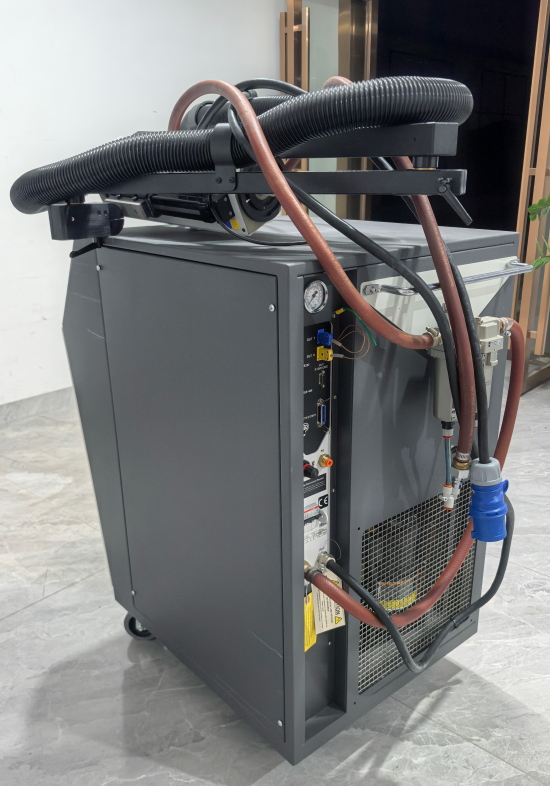

TPO4300A - 8C31 - 7 Thermal Flow Meter was meticulously crafted by Temptronic (which was later acquired by inTEST), a renowned company in the field of temperature testing equipment. This device is a high and low temperature air circulation impact testing equipment designed for high-end applications, specifically for the temperature environment reliability testing of electronic components, semiconductor chips, printed circuit boards (PCBs), and various components in harsh environments.
It precisely regulates high and low temperature airflows and applies them to the tested device (DUT) at a very high rate, realistically simulating the extreme temperature change environments that may occur in nature and various industrial scenarios. Throughout the entire electronic industry chain, from the early-stage research and development of semiconductor manufacturing to the quality inspection and reliability verification of electronic products, TPO4300A - 8C31 - 7 plays a crucial role and is a key testing device for ensuring the stable operation of electronic products under complex temperature conditions.
Features:
Temperature range: -80° to +225°C
Typical temperature conversion rate:
-55° to +125°C: about 7 seconds
+125° to -55°C: about 20 seconds
Temperature control: Air or patented DUT dual circuit directly against the DUT housing at temperatures up to ±0.1°C
DUT sensor ports: four: internal diode, type T or K thermocouple and 100 ohm RTD
Temperature setting, display and resolution: ±0.1°C
Temperature accuracy: 1.0°C (calibrated according to NIST standards)
Remote interface port: four: IEEE-488, RS232C, SOT/EOT/SFF, Ethernet.
Color user controls the front panel on the touch screen or via the remote interface
