Product overview

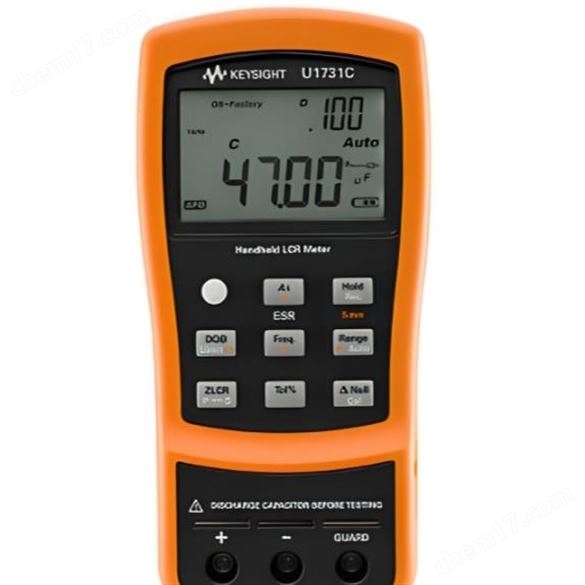

The U1731C belongs to the Keysight U1730C series and provides users with basic LCR measurement functions. With a count resolution of 20,000 and a basic accuracy of 0.2%, it can measure inductance, capacitance, resistance and other component parameters more accurately. Extensive LCR measurement range with 3 selectable test frequencies up to 1kHz. The instrument also has an automatic identification (Ai) function that automatically determines and displays component types and measurements, reducing human judgment errors and improving measurement efficiency. In addition, through IR-USB connectivity, data can be easily recorded to a PC for subsequent analysis and processing. The U1731C is powered by a 9V battery with up to 16 hours of battery life, which is suitable for outdoor or field tests where portability is required.
Product characteristics
High precision measurement: 20,000 count resolution and 0.2%+3 words basic accuracy, can achieve the precise measurement of inductance, capacitance, resistance and other components parameters.
Multi-frequency optional: 100Hz, 120Hz and 1kHz are provided as three optional test frequencies, which can meet the characteristics of different types of components at different frequencies.
Automatic recognition function: Automatic recognition (Ai) function can automatically determine and display the component type and measurement value, without the user to manually switch modes, improving the measurement efficiency and reducing the difficulty of operation.
Detailed component analysis: With ESR (equivalent series resistance), Z (impedance), D (loss factor), Q (quality factor), Ө (impedance Angle) and other functions, can carry out detailed characteristic analysis of components, to help users fully understand the performance of components.
Long battery life: Up to 16 hours of battery life when powered by a single 9V battery can meet the needs of long field tests, reducing the hassle of frequent battery replacement or finding a power source.
