Product Overview：

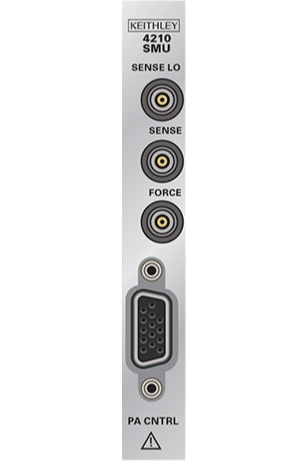

The Keithley High - Power Source Measure Unit 4210 - SMU is a crucial component specifically designed for the Keithley 4200A - SCS Parameter Analyzer. It is designed to address complex and harsh test environments, accurately complete low - current measurement tasks under difficult conditions such as high load capacitance. This module effectively solves the measurement stability problems caused by the use of long cables, switch matrices, gate - contact chucks, and other fixtures, providing reliable test guarantees for scientific research and industrial production. With its excellent performance, the 4210 - SMU shows extremely high application value in many fields. It is widely used in industries such as LCD display manufacturing, nano - FET device testing, semiconductor characteristic analysis, process development, and manufacturing, helping enterprises and research institutions obtain accurate test data and promoting the technological development and innovation of related fields.
Product Features：
Superior High - Capacitance Load Capacity: When the current is in the extremely low - current range of 1 - 100pA, the 4210 - SMU can handle a load capacitance of up to 1µF. Compared with the typical 1000pF level of similar products, this represents a 1000 - fold increase. This enables it to significantly enhance measurement stability in high - capacitance load test scenarios, ensure the reliability of data, and provide stable support for high - demand test tasks.
Top - Notch High - Precision Measurement Performance: It has high - resolution measurement capabilities, for example, a measurement resolution of 100fA. Under any test conditions, it can accurately obtain current and voltage measurement results, fully meeting the application scenarios with extremely high requirements for measurement accuracy. It provides accurate data support for research and production, and helps researchers and engineers deeply analyze device characteristics.
Appropriate Medium - Power Output: It can provide just - right power output. While ensuring stable power supply, it can also guarantee the sensitivity and accuracy of measurements. Whether it is the testing of low - power - consumption chips or the testing of various devices that require medium - power drive, it can easily handle these tasks, meet diverse testing needs, and is a capable assistant for various testing jobs.
Flexible Four - Quadrant Operation: It supports the four - quadrant operation mode and can accurately perform both forward and reverse voltage and current measurements. This feature enables it to flexibly deal with various types of devices under test and complex test scenarios, provides convenience for comprehensive device characteristic analysis, and helps users more comprehensively understand device performance.
