Product Description:

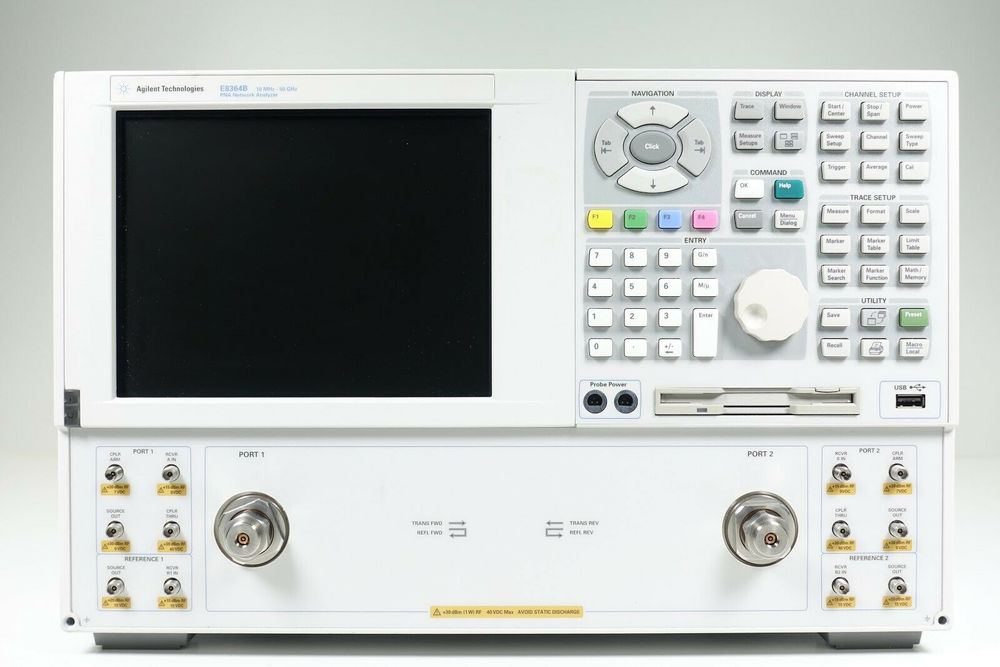

The E8364B vector network analyzer is a member of the PNA series network analyzer platform that combines speed and accuracy to meet the demanding requirements of today's high-frequency, high-performance component testing requirements. The PNA family addresses these test challenges by providing the right combination of fast scan speeds, wide dynamic range, low trace noise, and flexible connections.
The E8364B now has a new frequency offset feature that enables more accurate measurement of mixers and inverters.
Powerful automation and self-service tools make the instrument ideal for R&D and manufacturing.
Features:
Dynamic range is 111 dB at 50 GHz
The trace noise is 0.006 dB at 1 kHz IFBW
26 μsec/ point measurement speed
32 measurement channels with a maximum of 16,001 points per channel
TRM/LRM calibration is supported for the most accurate on-wafer, in-fixture, and waveguide measurements
