Product Description:

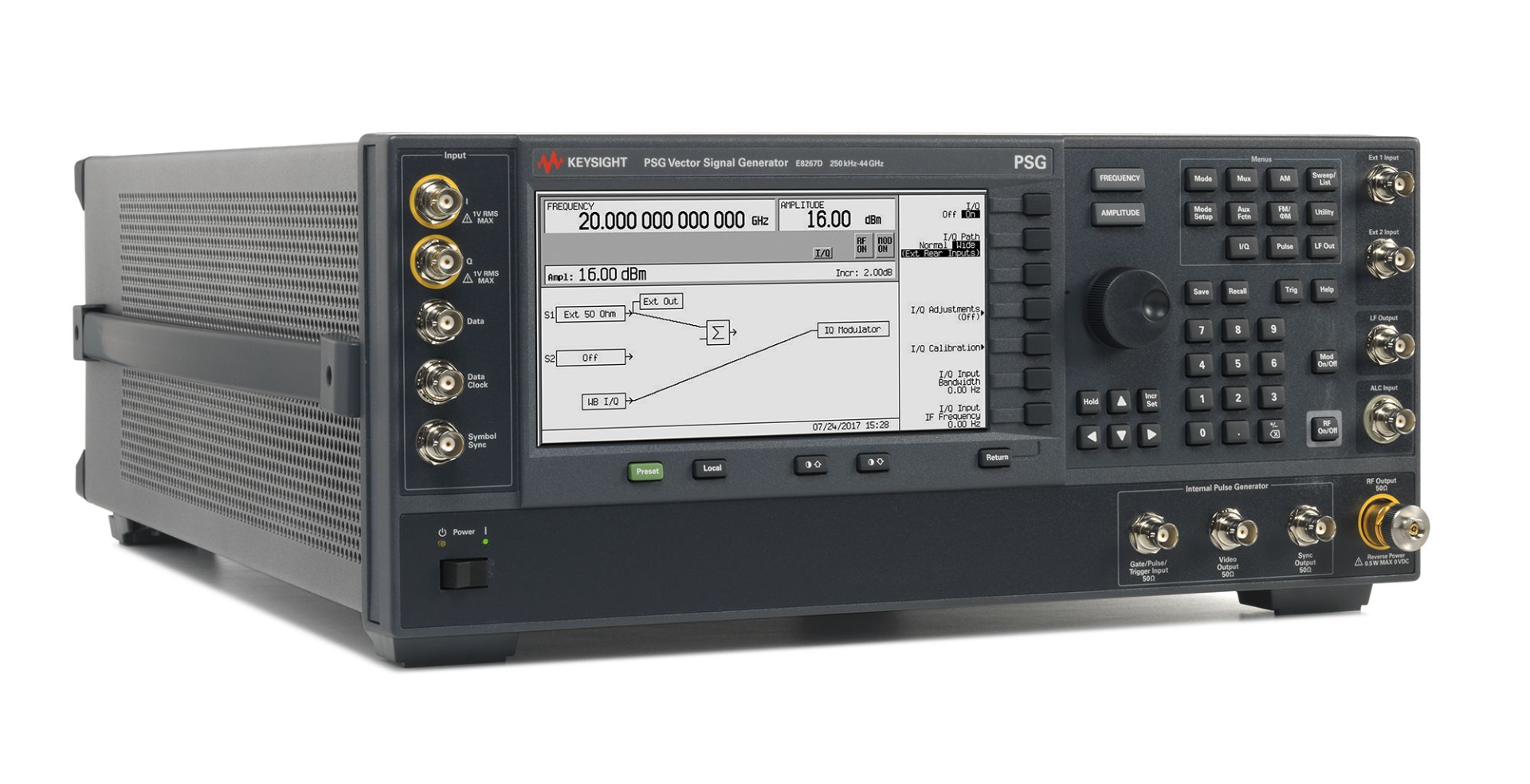

The Agilent E8267D PSG vector signal generator is the industry's first integrated microwave vector signal generator with I/Q modulation up to 44 GHz. It features an advanced wideband internal baseband generator that is capable of flexible arbitrary waveform playback or complex real-time signal generation. The E8267D PSG also features a built-in wideband I/Q modulator that delivers up to 2 GHz RF modulation bandwidth and is a perfect complement to Agilent's N6030A standalone wideband arbitrary waveform generator for I/Q waveform simulation up to 1 GHz RF bandwidth. Available only in the E8267D PSG, this ground-breaking integrated vector capability greatly simplifies the generation of complex modulated signals for design and manufacturing test applications in aerospace, defense, satellite communications, and broadband wireless.
PSG is fully customized for today's RF and microwave test applications, while easily upgrading as needs change in the future. Choose from a variety of optional enhancements to configure the E8267D PSG for applications ranging from distortion testing to baseband coding algorithm development and advanced digital microwave transceiver design validation. See below for a complete list of E8267D PSG performance enhancements and accessory options.
Product characteristics
250 kHz to 20, 31.8 or 44 GHz (0.001 Hz resolution)
+22 dBm @ 20 GHz and +18 dBm @ 40 GHz output power (typical)
160 MHz (expandable to 2 GHz) RF modulation bandwidth
AM, FM, ØM and pulse
ASK, FSK, MSK, PSK, QAM, Custom I/Q
Step, list, and ramp scanning frequency and power
Source control using the PSA series spectrum analyzer
Internal baseband generator (80 MHz RF BW) : arbitrary waveform and real-time I/Q
Compatible with broadband (1 GHz) N6030A arbitrary waveform generator
