Product Description:

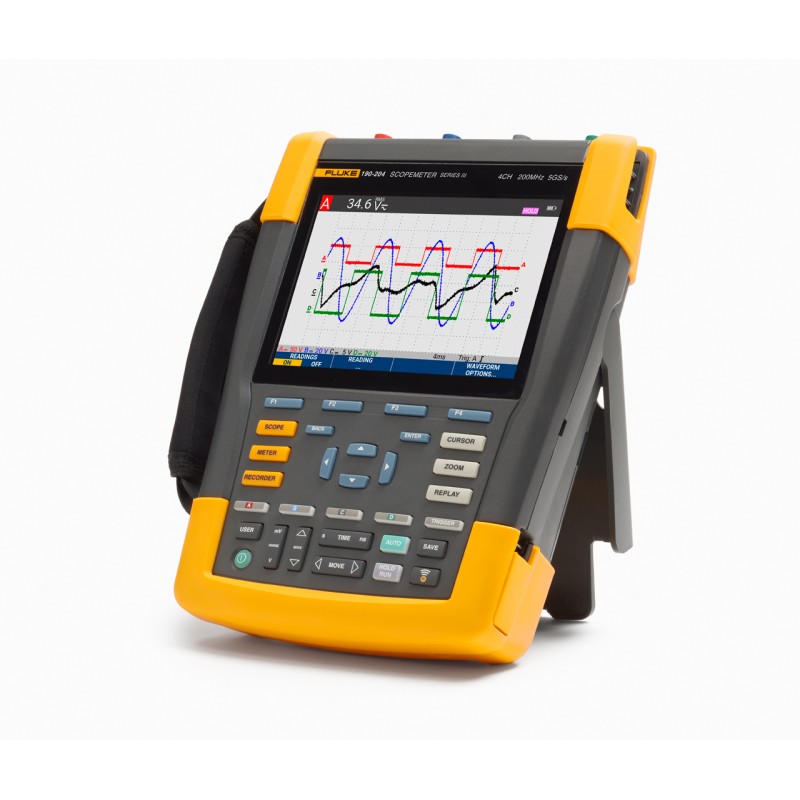

As the first four-channel portable oscilloscope with a safety rating of CAT III 1000V/CAT IV 600V, The Fluke ScopeMeter 190-204/S combines unprecedented performance, durability and portability with 200 MHz bandwidth and a real-time sampling rate of up to 2.5 GS/s and a resolution of 200 ps to capture noise and other interference. This model has deep memory and can store up to 10,000 samples per channel; As a result, you can examine a very small part of the waveform in detail, and its IP-51 rating can withstand dust, dripping, humidity, and a wide range of temperature changes. The Fluke ScopeMeter test tool is powered by handheld batteries and is designed to meet the needs of field service professionals.
Features:
Four electrically isolated inputs
CAT III 1000 V/CAT IV 600 V safety rating
200 MHz bandwidth model
2.5 GS/ s
Deep memory: 10,000 samples are captured per channel waveform, so you can zoom in on the details
The 4-meter measurement is carried out through the oscilloscope BNC input
Connect and view continuous automatic trigger, single shot, pulse width and video trigger
The oscilloscope records rolling patterns and captures waveform sampling data for up to 48 hours
TrendPlot, a 22-day trend measurement reading
