Product Description:

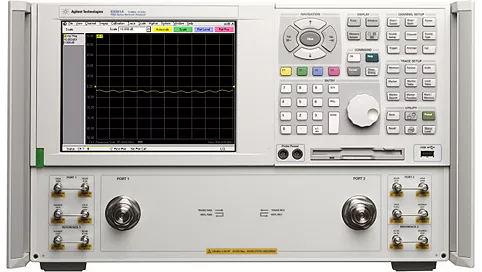

The E8361A Network Analyzer offers general-purpose network analysis capabilities with optional software and/or hardware that can be customized for your application, such as multi-port, pulsed RF, etc.
The E8361A Network Analyzer can display up to 16 Windows simultaneously, which can be resized and rearranged to display up to 4 active traces and 4 memory traces per window. Formats include: logarithmic or linear magnitude, SWR, phase, group delay, real and imaginary numbers, Smith's circle chart, polar coordinates. Each trace has 10 independent markers, including reference markers for incremental marker operations, as well as logarithmic or linear amplitude, phase, real, imaginary, SWR, delay, R + jX, and G + jB formats. With the Agilent E8361A network analyzer, you can define test limit lines displayed on the display for linear, CW (single frequency), power or segment scan testing.
Features:
Dynamic range of 94 dB and trace noise of <0.006 dB. (Specified frequency is 67 GHz, operating frequency is 70 GHz)
<26 microseconds/point measurement speed, 32 channels, 16,001 points
TRL/LRM calibration, on-wafer, in-fixture, waveguide and antenna measurement
Mixer conversion loss, return loss, isolation and absolute group delay
Amplifier gain compression, harmonics, IMD and pulsed RF
