Product Description:

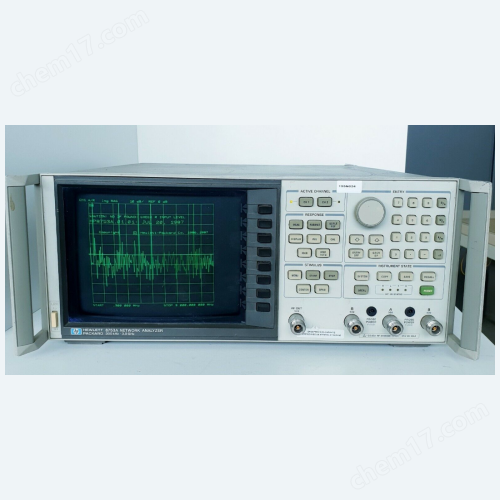

The Agilent 8753A is a high-performance RF network analyzer that covers a frequency range of 300 kHz to 3 GHz and a dynamic range of 100 dB. (50 ohms). The Agilent 8753A RF network analyzer features an integrated synthetic frequency source (100 mW, resolution 1 Hz), a 3-input receiver section with a dynamic range of >100 dB, up to 1601 digitizing points per channel, and a 9-inch diagonal high-resolution large-screen display. All in one box. The Agilent 8753A RF network analyzer has a dynamic accuracy of 0.05 dB in the 40 dB range. Various display formats are available, including logarithmic amplitude, SWR, phase, group delay, polar coordinates, and Smith circle plots.
Features:
300 kHz to 3 GHz
Integrated 1 Hz resolution synthesis source
Save/call directly to external CD-ROM drive
Time domain analysis
100 dB dynamic range
Group delay and linear phase deviation
0.001 dB, 0.01 degree, 0.01 nanosecond labeling resolution
Built-in precision enhancement
